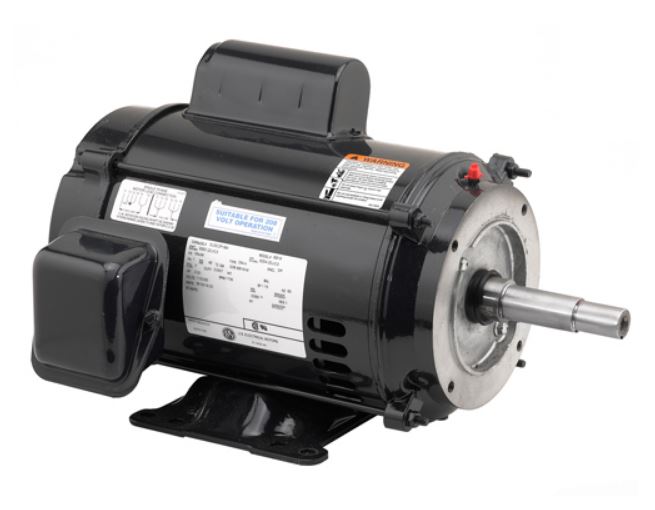

DJ5C1K18M US Motors 5HP 3600RPM 184JM ODP 230V 1 Phase Model BB17
SKU:
DJ5C1K18M
Regular price
$761.91
Regular price
Sale
Sale price
$761.91
- Description
- SPECS:
Description
Model: BB17
Buy US Motors DJ5C1K18M by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
- For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
Used where dirt and moisture are minimal.
This single phase motor features:
- Class F Insulation
- Rolled Steel Frame
- Oversized Ball Bearings w/Locked Shaft End Construction
- Reversible Rotation
- F1 Assembly Position
- Shaft Slinger On Pulley End
- Lifting Provisions
- “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
| MFR # | DJ5C1K18M | Zoro # | G2199408 |
| UPC # | 786382024109 | Country of Origin | Mexico |
Dimensions
| Length Less Shaft | 15 5/16 in | Shaft Length | 4 1/4 in |
| Shaft Dia. | 1 in | Overall Length | 19 9/16 in |
| Body Dia. | 7.8 in | Bolt Circle Dia. | 5 7/8 in |
| Height | 10 1/2 in | ||
Details
| Item | Motor | Motor Design | DM4 |
| Phase | Single | HP | 5 |
| Voltage | 230V AC | Frame | 184JM |
| Motor Enclosure Design | Open Dripproof | Motor Mounting Type | Rigid Base |
| Full Load Amps | 19.6 | Hz | 60 Hz |
| Standards | CSA Certified, UR | Nameplate RPM | 3,520 |
| Ins. Class | F | No. of Speeds | 1 |
| Motor Application | Close Coupled Pump | Motor Service Factor | 1.15 |
| Motor Frame Material | Steel | Motor Bearings | Ball |
| Max. Ambient Temp. | 40 Degrees C | NEMA Design | L |
| Duty Cycle | Continuous | Weight | 82 lb |
| Conduit Box Position | F1 | Max. SF Amps | 23.2 |
