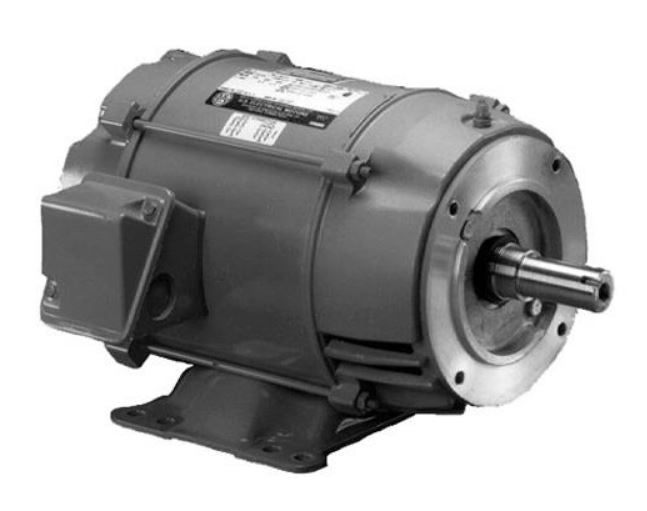

* Image is for reference only

DJ40P2DP US Motors 40HP 1800RPM 324JP ODP 208-230/460V 3 Phase Model FM37

SKU: DJ40P2DP
$2,323.91
Sale $2,323.91
Description

Model: FM37

Buy US Motors DJ40P2DP by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame
  • Aluminum End Shields 140-250, Cast Iron End Shields 280-320
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Premasked Mylar Nameplate (with "CE" Mark)
  • F1 Assembly Position
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
  • Double Shielded Bearings
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
    Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ40P2DP Zoro # G0405350
UPC # 786382116163 Country of Origin Mexico

Dimensions

Shaft Dia. 1 1/4 in Overall Length 30 3/8 in

Details

Item Motor Motor Design 3-Phase
Motor Enclosure Design Open Dripproof HP 40
Nameplate RPM 1,780 Frame 324JP
Voltage 208-230/460V AC Motor Mounting Position Horizontal
Motor Bearings Ball Motor Frame Material Steel
Hz 60/50 Phase Three
Motor Mounting Type Rigid Base CC Number CC030A
Full Load Amps 102.0-91.0/46.0 Standards CSA Certified, ENERGY cURus
Nominal Efficiency 94.1 % Ins. Class F
Motor Service Factor 1.15 Conduit Box Position F1
Max. Ambient Temp. 40 Degrees C Voltage @ 50Hz 190V, 208-230/460V
Weight 454 lb NEMA Design B
Regreasable Bearings Regreasable Bearings HP @ 50Hz 40
Full Load Amps @ 50Hz 102.0-91.0/46.0 RPM @ 50Hz 1,780/1,475
Bearing Protection Double Shields No. of Speeds 1
Service Factor @ 50Hz 1.15 Inverter Rated Yes
Duty Cycle Continuous Inverter Rating 20:1 (VT), 4:1 (CT)
Max. SF Amps 118.0-105.0/52.0 Usable @ 208V Yes
