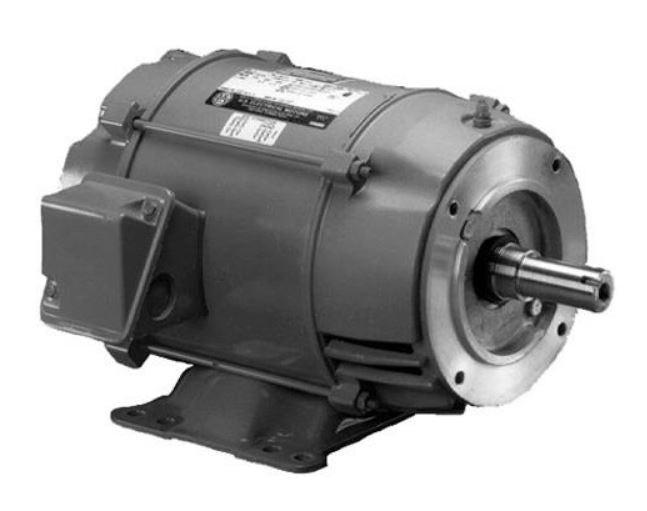

DJ40P1DP US Motors 40HP 3600RPM 286JP ODP 208-230/460V 3 Phase Model FM36

Model: FM36

Buy US Motors DJ40P1DP by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

This three phase motor features:

• Class F Insulation, Class B Rise At Service Factor
• Rolled Steel Frame
• Aluminum End Shields 140-250, Cast Iron End Shields 280-320
• Oversized Ball Bearings w/Locked Shaft End Construction
• Premasked Mylar Nameplate (with "CE" Mark)
• F1 Assembly Position
• Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
• Double Shielded Bearings
• 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
  Sine Wave Power

 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

• Motor Phase 3 ph
• Motor Horsepower 40 hp
• Synchronous Rpm 3600 rpm
• Country of Origin MEX
• Motor Supply Voltage 190/380//208-230/460 V
• Frame Size 286JP
• Enclosure Type ODP (Open Drip-Proof)
• Frequency Rating 50/60 Hz
• Base RPM 2945 rpm - 3560 rpm
• Duty Condition Type Continuous Duty
• Mounting Type Horizontal / Foot
• Full Load Efficiency 93.0 %
• Motor Poles 2
• Description For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft, U.S. Motors® close coupled pump motors are available with JM, JP, or Westcoast shaft extensions.
• Overall Length C Dimension 28.6 in
• NEMA Design Class B
• Service Factor 1.15
• Insulation Class F
• Standards Met EE, NEMA Premium
• Weight 250 lbs
• Harmonization Code 8501.52.8000
• Manufacturer Upc Number 786382116156
• Model FM36
• Max Allowable Current 45 A, 57 A, 90 to 104 A, 114 A
• Product Types AC Motors
• Torque 59 ft-lbs
• Opposite Drive End Bearing 6210-2Z-J/C3
• Product Type General Purpose Motors
