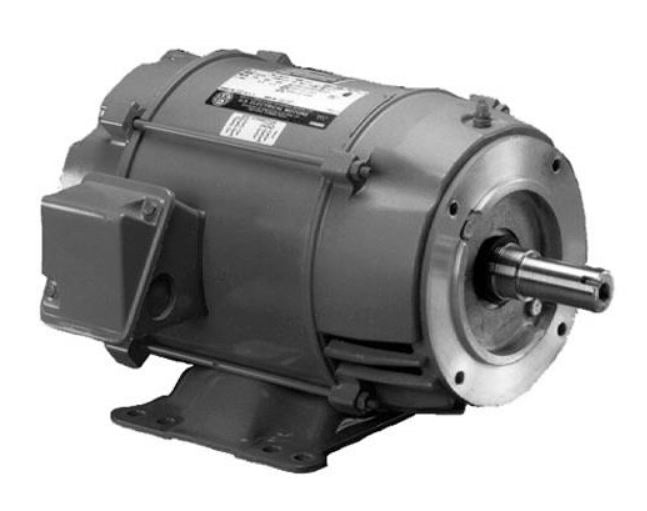

* Image is for reference only

DJ3P3DM US Motors 3HP 1200RPM 213JM ODP 208-230/460V 3 Phase Model CS18

SKU: DJ3P3DM
$688.11
Sale $688.11
Description

Model: CS18

Buy US Motors DJ3P3DM by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame
  • Aluminum End Shields 140-250, Cast Iron End Shields 280-320
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Premasked Mylar Nameplate (with "CE" Mark)
  • F1 Assembly Position
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
  • Double Shielded Bearings
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
    Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ3P3DM Zoro # G0404632
UPC # 786382092061 Country of Origin Mexico

Dimensions

Shaft Length 7 1/4 in Length Less Shaft 13 1/2 in
Overall Length 20 13/16 in Shaft Dia. 7/8 in
Body Dia. 9.4 in Bolt Circle Dia. 7 1/4 in
Height 11 3/16 in

Details

Item Pump Motor Motor Design 3-Phase
Motor Enclosure Design Open Dripproof HP 3
Nameplate RPM 1,175 Frame 213JM
Voltage 208-230/460V AC Motor Frame Material Rolled Steel
Full Load Amps 9.4-8.9/4.4 Phase Three
Motor Service Factor 1.15 Hz 60/50
Motor Bearings Ball Motor Mounting Type Rigid Base
Motor Mounting Position Horizontal Ins. Class F
Motor Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft Nominal Efficiency 88.5 %
Part Winding Start Capable No NEMA Design B
No. of Speeds 1 Bearing Protection Shaft Shields
Regreasable Bearings Regreasable Bearings Max. SF Amps 10.7-9.9/4.9
Duty Cycle Continuous Max. Ambient Temp. 40 Degrees C
Weight 90 lb Usable @ 208V Yes
Conduit Box Position F1 Motor Shaft Design 7/8 in
