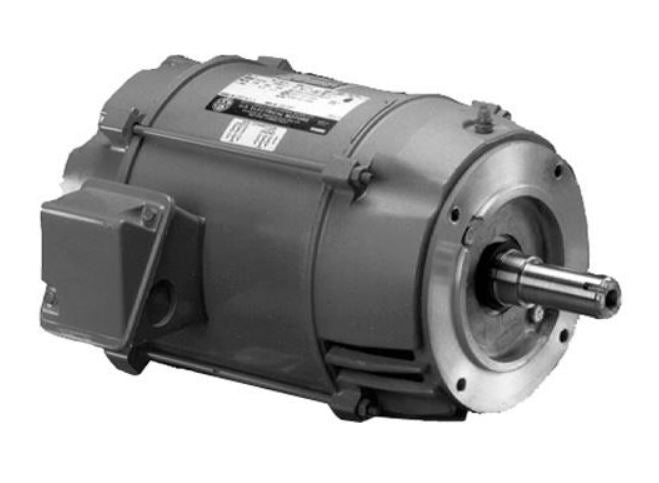

* Image is for reference only

DJ3P2DU US Motors 3HP 1800RPM 182JM ODP 208-230/460V 3 Phase Model FM55

SKU: DJ3P2DU
$554.29
Sale $554.29
Description

Model: FM55

Buy US Motors DJ3P2DU by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame
  • Aluminum End Shields 140-250, Cast Iron End Shields 280-320
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Premasked Mylar Nameplate (with "CE" Mark)
  • F1 Assembly Position
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
  • Double Shielded Bearings
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
    Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ3P2DU Zoro # G0404675
UPC # 786382116934 Country of Origin Mexico

Dimensions

Length Less Shaft 11 3/4 in Shaft Length 4 1/4 in
Overall Length 16 in Shaft Dia. 7/8 in
Height 9 9/16 in Body Dia. 8 in
Bolt Circle Dia. 5 7/8 in

Details

Item Pump Motor Motor Design 3-Phase
Motor Enclosure Design Open Dripproof HP 3
Nameplate RPM 1,770 Frame 182JM
Voltage 208-230/460V AC Nominal Efficiency 89.5 %
Motor Mounting Type Rigid Base Motor Service Factor 1.15
Motor Mounting Position Horizontal Motor Bearings Ball
Phase Three Motor Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft
Ins. Class F Hz 60/50
Full Load Amps 8.3-7.7/3.8 Motor Frame Material Rolled Steel
Duty Cycle Continuous Part Winding Start Capable No
No. of Speeds 1 Max. SF Amps 9.5-8.6/4.3
Weight 50 lb NEMA Design B
Motor Shaft Design 7/8 in Usable @ 208V Yes
Bearing Protection Shaft Shields Regreasable Bearings Regreasable Bearings
Max. Ambient Temp. 40 Degrees C
