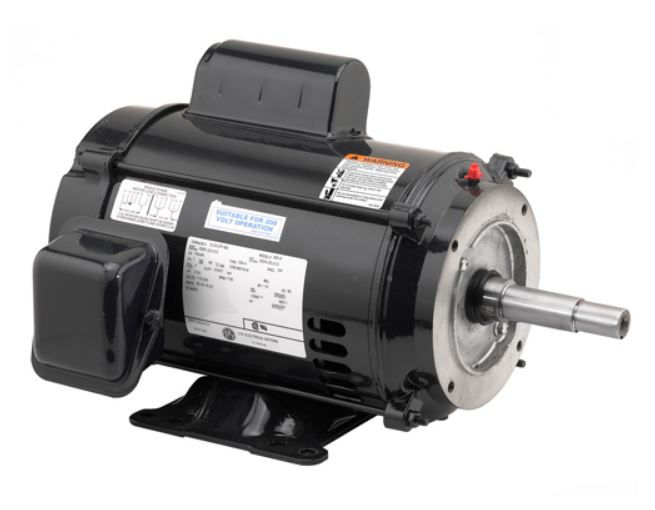

* Image is for reference only

DJ3C2P18P US Motors 3HP 1800RPM 184JP ODP 115/230V 1 Phase Model BB07

SKU: DJ3C2P18P
$577.28
Sale $577.28
Description

Model: BB07

Buy US Motors DJ3C2P18P by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Rolled Steel Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Shaft Slinger On Pulley End
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ3C2P18P Zoro # G2197798
UPC # 786382023676 Country of Origin Mexico

Dimensions

Shaft Length 4 1/4 in Length Less Shaft 15 5/16 in
Overall Length 19 9/16 in Shaft Dia. 7/8 in
Body Dia. 7.8 in Height 10 1/2 in

Details

Item Pump Motor Motor Design Permanent Split Capacitor
Phase Single HP 3
Voltage 115/230V AC Frame 184JP
Motor Enclosure Design Open Dripproof Motor Mounting Type Rigid Base
Full Load Amps 38.0/19.0 Motor Bearings Ball
Motor Frame Material Rolled Steel No. of Speeds 1
Motor Shaft Design 7/8 in Nameplate RPM 1,735
Max. Ambient Temp. 40 Degrees C Hz 60 Hz
Motor Service Factor 1.15 Motor Application Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft, Dirt and Moisture are Minimal
Ins. Class F Motor Shaft Rotation CCW
Weight 66 lb NEMA Design L
Conduit Box Position F1 Bearing Protection Shaft Shields
Part Winding Start Capable No
