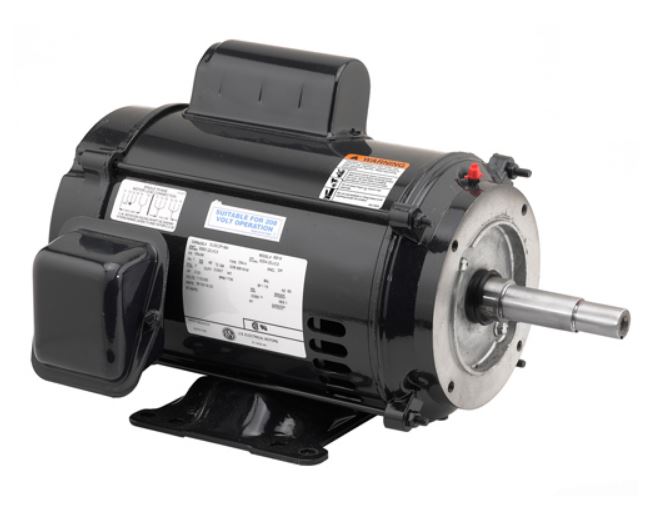

* Image is for reference only

DJ3C2P18M US Motors 3HP 1800RPM 184JM ODP 115/230V 1 Phase Model BB16

SKU: DJ3C2P18M
$577.28
Sale $577.28
Description

Model: BB16

Buy US Motors DJ3C2P18M by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Rolled Steel Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Shaft Slinger On Pulley End
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ3C2P18M Zoro # G6010822
UPC # 786382023669 Country of Origin Mexico

Dimensions

Shaft Dia. 7/8 in Shaft Length 4 1/4 in
Length Less Shaft 15 5/16 in Overall Length 19 9/16 in
Body Dia. 7.8 in Height 10 1/2 in

Details

Motor Design Permanent Split Capacitor Item Pump Motor
Phase Single HP 3
Frame 184JM Voltage 115/230V AC
Motor Enclosure Design Open Dripproof Motor Mounting Type Rigid Base
Full Load Amps 38.0/19.0 No. of Speeds 1
Motor Shaft Rotation CCW Motor Application Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft, Dirt and Moisture are Minimal
Motor Service Factor 1.15 Ins. Class F
Hz 60 Hz Motor Bearings Ball
Nameplate RPM 1,735 Motor Frame Material Rolled Steel
Motor Shaft Design 7/8 in Max. Ambient Temp. 40 Degrees C
NEMA Design L Bearing Protection Shaft Shields
Weight 66 lb Conduit Box Position F1
Part Winding Start Capable No
