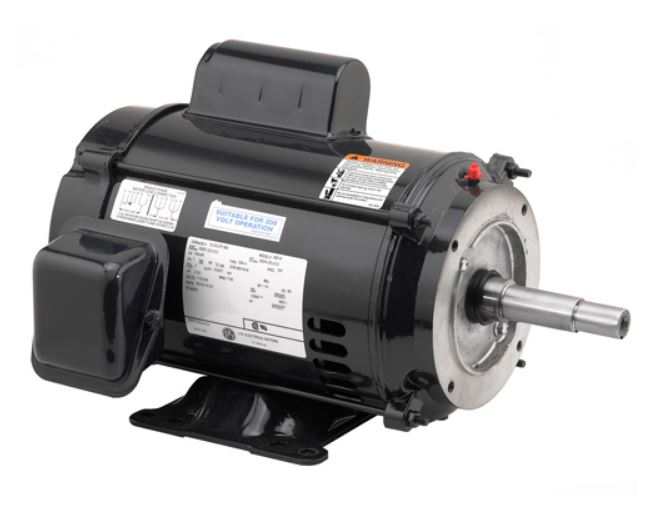

* Image is for reference only

DJ3C1P18M US Motors 3HP 3600RPM 182JM ODP 115/230V 1 Phase Model BB15

SKU: DJ3C1P18M
$633.71
Sale $633.71
Description

Model: BB15

Buy US Motors DJ3C1P18M by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Rolled Steel Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Shaft Slinger On Pulley End
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ3C1P18M Zoro # G1944530
UPC # 786382023645 Country of Origin Mexico

Dimensions

Shaft Dia. 7/8 in Length Less Shaft 13 1/4 in
Shaft Length 4 1/4 in Overall Length 17 1/2 in

Details

Item Close-Coupled Pump Motor Motor Design Capacitor-Start
HP 3 RPM Range 3,001-3,600
Nameplate RPM 3,600 Voltage 115/230V AC
Frame 182JM Motor Mounting Type Face/Base
Motor Service Factor 1.15 Motor Shaft Design JM Threaded
CC Number CC030A Max. Ambient Temp. 40 Degrees C
Standards CSA (191252), UL (E51488) No. of Speeds 1
Motor Frame Material Steel Full Load Amps 16/32
Hz 60 Hz Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW
Motor Sub Application Close-Coupled Pump Ins. Class F
Phase Single Motor Thermal Protection None
Inverter Rated No Motor Application Pump
Motor Bearings Ball Duty Continuous
Conduit Box Position F1 Usable @ 208V No
Weight 81 lb Finish Unfinished
Usable @ 200V No Duty Cycle Continuous
Conduit Box Location Exterior
