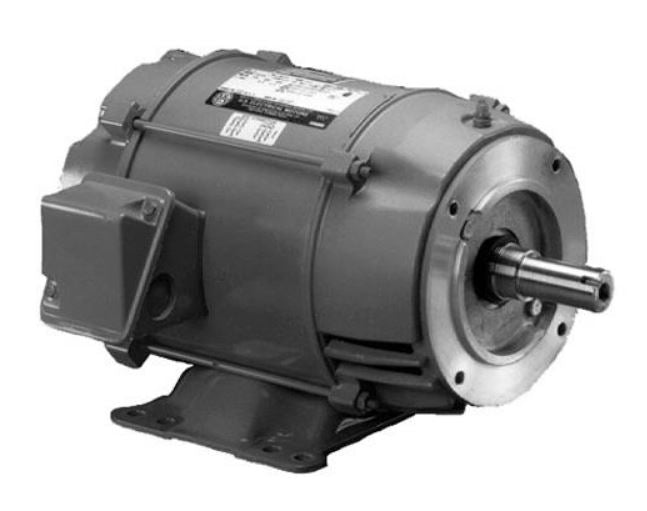

* Image is for reference only

DJ34P3DM US Motors 3/4HP 1200RPM 143JM ODP 208-230/460V 3 Phase Model FF63

SKU: DJ34P3DM
$478.98
Sale $478.98
Description

Model: FF63

Buy US Motors DJ34P3DM by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame
  • Aluminum End Shields 140-250, Cast Iron End Shields 280-320
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Premasked Mylar Nameplate (with "CE" Mark)
  • F1 Assembly Position
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
  • Double Shielded Bearings
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
    Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ34P3DM Zoro # G0404194
UPC # 786382092047 Country of Origin Mexico

Dimensions

Shaft Dia. 7/8 in Overall Length 15 3/8 in
Shaft Length 4 1/4 in Length Less Shaft 11 1/8 in
Bolt Circle Dia. 5 7/8 in Body Dia. 6.4 in
Height 6 3/4 in

Details

Item Pump Motor Motor Design 3-Phase
Motor Enclosure Design Open Dripproof HP 3/4
Nameplate RPM 1,155 Frame 143JM
Voltage 208-230/460V AC Motor Service Factor 1.15
Motor Mounting Position Horizontal Motor Frame Material Rolled Steel
Motor Mounting Type Rigid Base Ins. Class F
Hz 60/50 Motor Bearings Ball
Phase Three Motor Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft
Full Load Amps 2.8-2.8/1.4 Nominal Efficiency 80 %
Bearing Protection Shaft Shields Usable @ 208V Yes
Max. SF Amps 3.1-3.0/1.5 NEMA Design B
Part Winding Start Capable No Max. Ambient Temp. 40 Degrees C
Duty Cycle Continuous Weight 30 lb
No. of Speeds 1 Conduit Box Position F1
Motor Shaft Design 7/8 in Regreasable Bearings Regreasable Bearings
