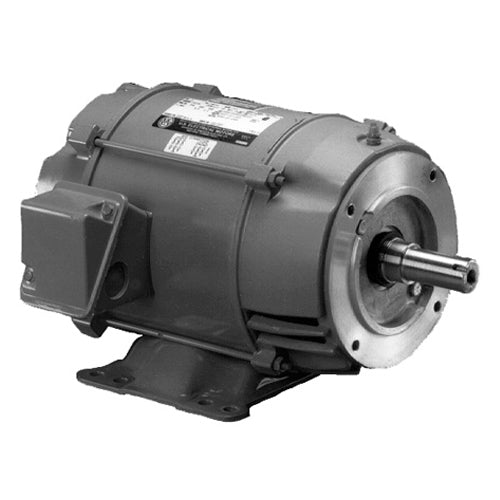

DJ32P2DP US Pump Motor 1.5HP 1800RPM 145JP ODP 208-230/460V 3 Phase FM27

US Nidec DJ32P2DP is a close coupled 1.5hp packing pump for industrial applications. Designed for the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.

ODP enclosure is intended for use where dirt and moisture are minimal. Unit has C-face and feet for mounting.

JP Pump motor features include:

• Model # FM27
• Replaces DJ32E2DP
• C-flange with base
• Rolled steel durable frame
• Oversized, double shielded ball bearings
• Packing seal
• F1 assembly position
• Class F insulation
