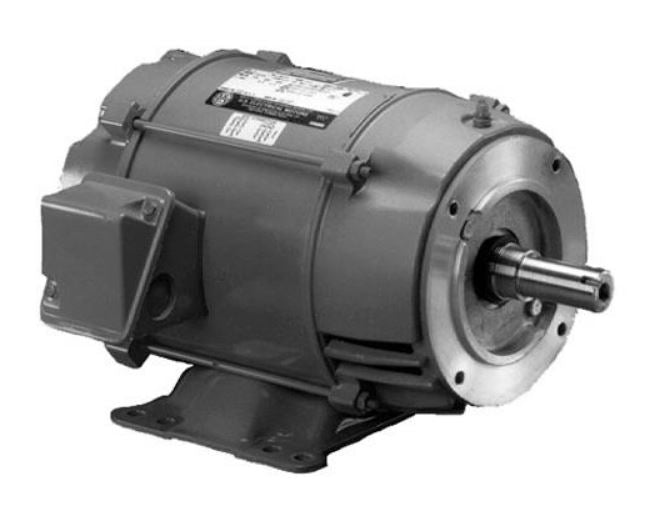

* Image is for reference only

DJ30P2DM US Motors 30HP 1800RPM 286JM ODP 208-230/460V 3 Phase Model FL81

SKU: DJ30P2DM
$2,114.78
Sale $2,114.78
Description

Model: FL81

Buy US Motors DJ30P2DM by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame
  • Aluminum End Shields 140-250, Cast Iron End Shields 280-320
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Premasked Mylar Nameplate (with "CE" Mark)
  • F1 Assembly Position
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
  • Double Shielded Bearings
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
    Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ30P2DM Zoro # G0404492
UPC # 786382114831 Country of Origin Mexico

Dimensions

Shaft Dia. 1 1/4 in Shaft Length 5 1/4 in
Overall Length 25 3/4 in Length Less Shaft 20 1/2 in
Bolt Circle Dia. 11 in Body Dia. 12.4 in
Height 15 7/16 in

Details

Item Pump Motor Motor Design 3-Phase
Motor Enclosure Design Open Dripproof HP 30
Nameplate RPM 1,780 Frame 286JM
Voltage 208-230/460V AC Nominal Efficiency 94.1 %
Motor Mounting Position Horizontal Motor Mounting Type Rigid Base
Phase Three Hz 60/50
Motor Service Factor 1.15 Ins. Class F
Motor Bearings Ball Full Load Amps 77.0-69.0/34.0
Motor Frame Material Rolled Steel Motor Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft
Part Winding Start Capable No NEMA Design B
Duty Cycle Continuous Bearing Protection Shaft Shields
Motor Shaft Design 1 1/4 in No. of Speeds 1
Regreasable Bearings Regreasable Bearings Weight 250 lb
Usable @ 208V Yes Conduit Box Position F1
Max. SF Amps 0-79.0/40.0 Max. Ambient Temp. 40 Degrees C
