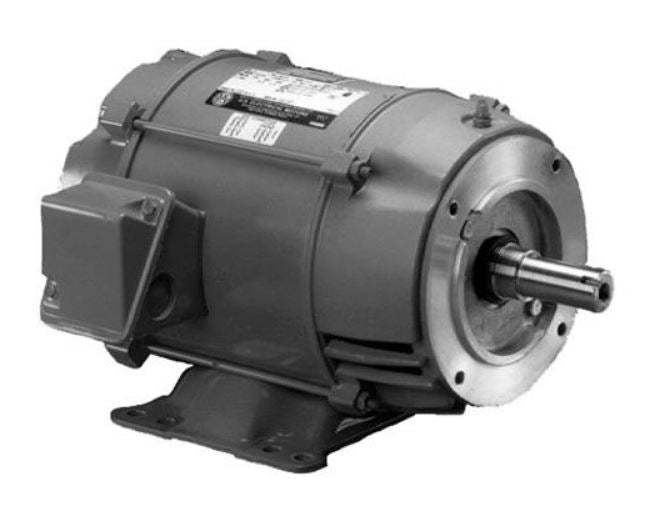

DJ30P1DP US Motors 30HP 3600RPM 284JP ODP 208-230/460V 3 Phase Model FM33

Model: FM33

Buy US Motors DJ30P1DP by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

This three phase motor features:

• Class F Insulation, Class B Rise At Service Factor
• Rolled Steel Frame
• Aluminum End Shields 140-250, Cast Iron End Shields 280-320
• Oversized Ball Bearings w/Locked Shaft End Construction
• Premasked Mylar Nameplate (with "CE" Mark)
• F1 Assembly Position
• Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
• Double Shielded Bearings
• 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
  Sine Wave Power

 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

• Motor Phase 3 ph
• Motor Horsepower 30 hp
• Synchronous Rpm 3600 rpm
• Country of Origin MEX
• Motor Supply Voltage 190/380//208-230/460 V
• Frame Size 284JP
• Enclosure Type ODP (Open Drip-Proof)
• Frequency Rating 50/60 Hz
• Base RPM 2945 rpm - 3560 rpm
• Duty Condition Type Continuous Duty
• Mounting Type Horizontal / Foot
• Full Load Efficiency 92.4 %
• Motor Poles 2
• Description For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft, U.S. Motors® close coupled pump motors are available with JM, JP, or Westcoast shaft extensions.
• Overall Length C Dimension 28.6 in
• NEMA Design Class B
• Service Factor 1.15
• Insulation Class F
• Standards Met EE, NEMA Premium
• Weight 225 lbs
• Harmonization Code 8501.52.8000
• Manufacturer Upc Number 786382116125
• Model FM33
• Max Allowable Current 34 A, 43 A, 68 to 79 A, 86 A
• Product Types AC Motors
• Torque 44.2 ft-lbs
• Opposite Drive End Bearing 6210-2Z-J/C3
• Product Type General Purpose Motors
