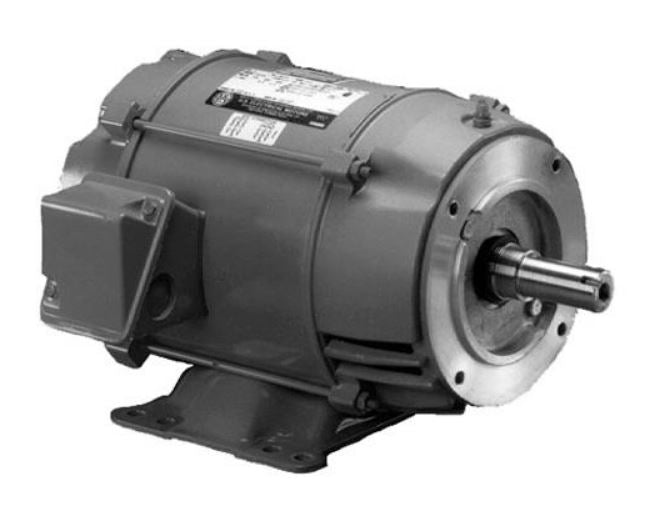

* Image is for reference only

DJ2P3DM US Motors 2HP 1200RPM 184JM ODP 208-230/460V 3 Phase Model FN36

SKU: DJ2P3DM
$540.40
Sale $540.40
Description

Model: FN36

Buy US Motors DJ2P3DM by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame
  • Aluminum End Shields 140-250, Cast Iron End Shields 280-320
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Premasked Mylar Nameplate (with "CE" Mark)
  • F1 Assembly Position
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
  • Double Shielded Bearings
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
    Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ2P3DM Zoro # G0403372
UPC # 786382092184 Country of Origin Mexico

Dimensions

Shaft Dia. 7/8 in Length Less Shaft 11 3/4 in
Shaft Length 7 1/4 in Overall Length 19 1/16 in
Body Dia. 8 in Bolt Circle Dia. 5 7/8 in
Height 9 9/16 in

Details

Item Pump Motor Motor Design 3-Phase
Motor Enclosure Design Open Dripproof HP 2
Nameplate RPM 1,175 Frame 184JM
Voltage 208-230/460V AC Motor Mounting Type Rigid Base
Motor Bearings Ball Full Load Amps 6.4-6.3/3.1
Motor Service Factor 1.15 Nominal Efficiency 87.5 %
Ins. Class F Motor Mounting Position Horizontal
Phase Three Hz 60/50
Motor Frame Material Rolled Steel Motor Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft
Usable @ 208V Yes No. of Speeds 1
Duty Cycle Continuous Conduit Box Position F1
NEMA Design B Bearing Protection Shaft Shields
Max. Ambient Temp. 40 Degrees C Part Winding Start Capable No
Max. SF Amps 7.2-6.8/3.4 Regreasable Bearings Regreasable Bearings
Motor Shaft Design 7/8 in Weight 60 lb
