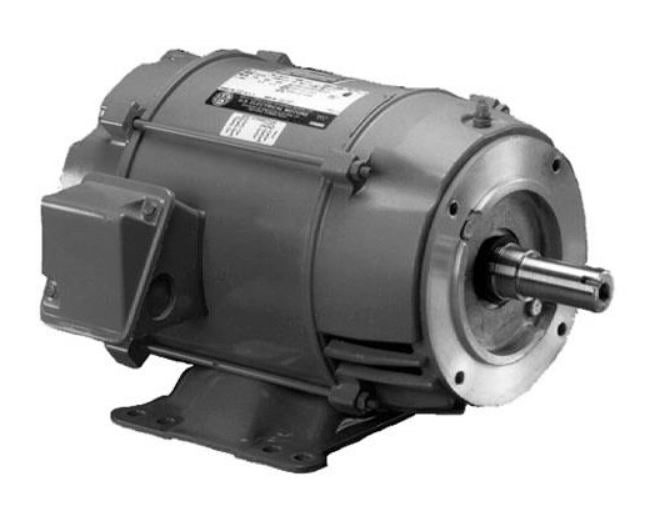

* Image is for reference only

DJ2E1DM US Motors 2HP 3600RPM 145JM ODP 208-230/460V 3 Phase Model FF31

SKU: DJ2E1DM
$422.48
Sale $422.48
Description

Model: FF31

Buy US Motors DJ2E1DM by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame
  • Aluminum End Shields 140-250, Cast Iron End Shields 280-320
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Premasked Mylar Nameplate (with "CE" Mark)
  • F1 Assembly Position
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
  • Double Shielded Bearings
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
    Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ32P2DM Zoro # G0399933
UPC # 786382092108 Country of Origin Mexico

Dimensions

Length Less Shaft 11 1/8 in Overall Length 15 3/8 in
Shaft Dia. 7/8 in Shaft Length 4 1/4 in
Height 6 3/4 in Body Dia. 6.4 in
Bolt Circle Dia. 5 7/8 in

Details

Item Pump Motor Motor Design 3-Phase
Motor Enclosure Design Open Dripproof HP 1 1/2
Nameplate RPM 1,745 Frame 145JM
Voltage 208-230/460V AC Motor Bearings Ball
Full Load Amps 4.4-4.1/2.1 Hz 60/50
Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Motor Frame Material Rolled Steel Nominal Efficiency 86.5 %
Motor Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft Phase Three
Motor Service Factor 1.15 Ins. Class F
Part Winding Start Capable No Bearing Protection Shaft Shields
Max. Ambient Temp. 40 Degrees C Weight 35 lb
Max. SF Amps 5.0-4.6.0/2.3 No. of Speeds 1
Duty Cycle Continuous NEMA Design B
Motor Shaft Design 7/8 in Usable @ 208V Yes
Conduit Box Position F1 Regreasable Bearings Regreasable Bearings
