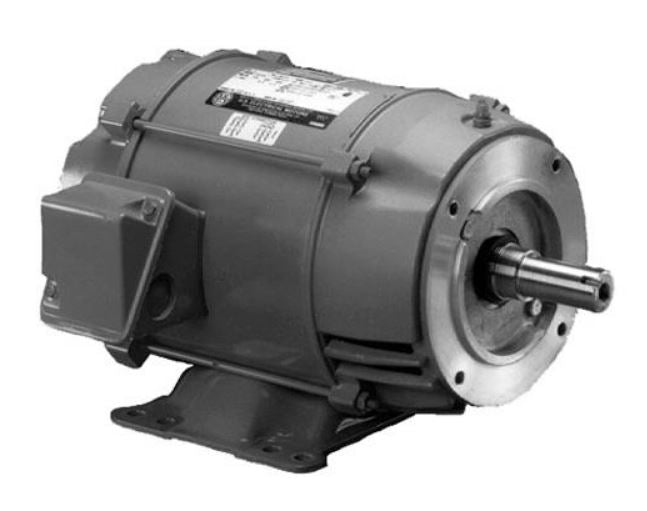

DJ25P2DM US Motors 25HP 1800RPM 284JM ODP 208-230/460V 3 Phase Model FL79

Model: FL79

Buy US Motors DJ25P2DM by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

This three phase motor features:

• Class F Insulation, Class B Rise At Service Factor
• Rolled Steel Frame
• Aluminum End Shields 140-250, Cast Iron End Shields 280-320
• Oversized Ball Bearings w/Locked Shaft End Construction
• Premasked Mylar Nameplate (with "CE" Mark)
• F1 Assembly Position
• Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
• Double Shielded Bearings
• 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
  Sine Wave Power

 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

• Motor Phase 3 ph
• Motor Horsepower 25 hp
• Synchronous Rpm 1800 rpm
• Country of Origin MEX
• Motor Supply Voltage 190/380//208-230/460 V
• Frame Size 284JM
• Enclosure Type ODP (Open Drip-Proof)
• Frequency Rating 50/60 Hz
• Base RPM 1470 rpm - 1775 rpm
• Duty Condition Type Continuous Duty
• Mounting Type Horizontal / Foot
• Full Load Efficiency 93.6 %
• Motor Poles 4
• Description For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft, U.S. Motors® close coupled pump motors are available with JM, JP, or Westcoast shaft extensions.
• Overall Length C Dimension 25.7 in
• NEMA Design Class B
• Service Factor 1.15
• Insulation Class F
• Standards Met EE, NEMA Premium
• Weight 225 lbs
• Harmonization Code 8501.52.8000
• Manufacturer Upc Number 786382114817
• Model FL79
• Max Allowable Current 29 A, 35 A, 58 A, 71 A
• Product Types AC Motors
• Torque 73.9 ft-lbs
• Opposite Drive End Bearing 6210-2Z-J/C3
• Product Type General Purpose Motors
