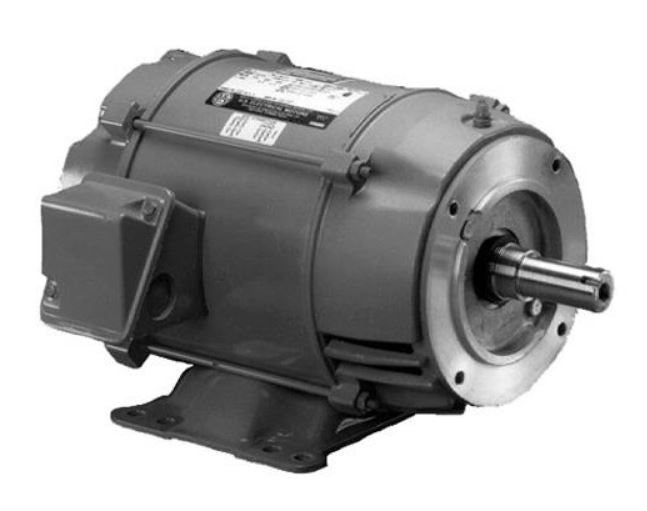

* Image is for reference only

DJ15P1DM US Motors 15HP 3600RPM 215JM ODP 208-230/460V 3 Phase Model FL78

SKU: DJ15P1DM
$1,137.10
Sale $1,137.10
Description

Model: FL78

Buy US Motors DJ15P1DM by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame
  • Aluminum End Shields 140-250, Cast Iron End Shields 280-320
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Premasked Mylar Nameplate (with "CE" Mark)
  • F1 Assembly Position
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
  • Double Shielded Bearings
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
    Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ15P1DM Zoro # G0402103
UPC # 786382116040 Country of Origin Mexico

Dimensions

Shaft Dia. 7/8 in Shaft Length 7 1/4 in
Length Less Shaft 15 in Overall Length 22 5/16 in
Bolt Circle Dia. 7 1/4 in Height 11 3/16 in
Body Dia. 9.4 in

Details

Item Pump Motor Motor Design 3-Phase
Motor Enclosure Design Open Dripproof HP 15
Nameplate RPM 3,505 Frame 215JM
Voltage 208-230/460V AC Hz 60/50
Motor Bearings Ball Motor Mounting Position Horizontal
Motor Sub Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft Motor Frame Material Rolled Steel
Motor Application Pump Motor Mounting Type Rigid Base
Full Load Amps 35.0/17.7 Motor Service Factor 1.15
Ins. Class F Nominal Efficiency 90.2 %
Phase Three NEMA Design B
Duty Cycle Continuous Conduit Box Position F1
Max. SF Amps 41.0/20.7 Motor Shaft Design 7/8 in
Regreasable Bearings Regreasable Bearings Part Winding Start Capable No
No. of Speeds 1 Bearing Protection Shaft Shields
Weight 105 lb Max. Ambient Temp. 40 Degrees C
