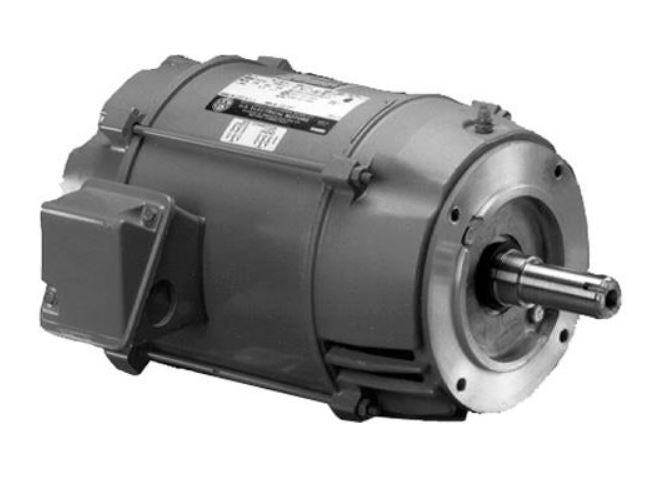

* Image is for reference only

DJ10P2DU US Motors 10HP 1800RPM 215JM ODP 208-230/460V 3 Phase Model FM53

SKU: DJ10P2DU
$1,023.75
Sale $1,023.75
Description

Model: FM53

Buy US Motors DJ10P2DU by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame
  • Aluminum End Shields 140-250, Cast Iron End Shields 280-320
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Premasked Mylar Nameplate (with "CE" Mark)
  • F1 Assembly Position
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
  • Double Shielded Bearings
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
    Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ10P2DU Zoro # G0401309
UPC # 786382116507 Country of Origin Mexico

Dimensions

Shaft Length 7 1/4 in Length Less Shaft 15 in
Shaft Dia. 7/8 in Overall Length 22 5/16 in
Bolt Circle Dia. 7 1/4 in Body Dia. 9.4 in
Height 11 3/16 in

Details

Item Pool and Spa Pump Motor Motor Design 3-Phase
Motor Enclosure Design Open Dripproof HP 10
Nameplate RPM 1,765 Frame 215JM
Voltage 208-230/460V AC Motor Mounting Type Rigid Base
Motor Sub Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft Motor Mounting Position Horizontal
Phase Three Ins. Class F
Full Load Amps 26.3-23.8/11.9 Motor Service Factor 1.15
Motor Application Pump Motor Bearings Ball
Hz 60/50 Nominal Efficiency 91.7 %
Motor Frame Material Rolled Steel Bearing Protection Shaft Shields
Max. SF Amps 0-27.2/13.6 No. of Speeds 1
Usable @ 208V Yes Duty Cycle Continuous
Motor Shaft Design 7/8 in Regreasable Bearings Regreasable Bearings
Weight 105 lb Part Winding Start Capable No
Max. Ambient Temp. 40 Degrees C NEMA Design B
