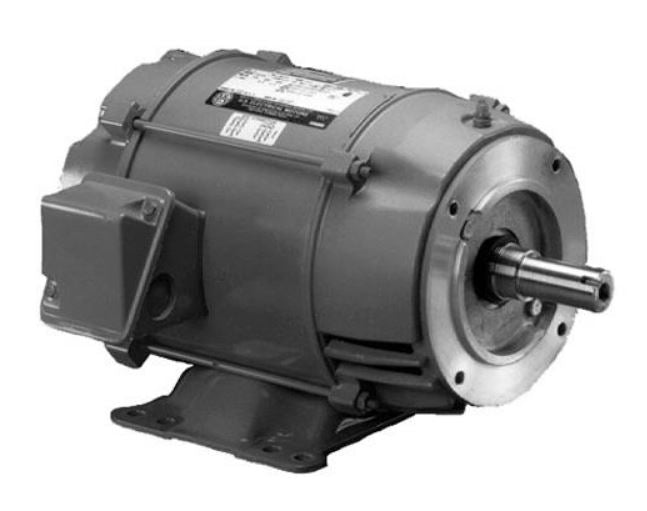

* Image is for reference only

DJ10P2DJ US Motors 10HP 1800RPM 215TCZ ODP 208-230/460V 3 Phase Model FM63

SKU: DJ10P2DJ
$838.75
Sale $838.75
Description

Model: FM63

Buy US Motors DJ10P2DJ by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame
  • Aluminum End Shields 140-250, Cast Iron End Shields 280-320
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Premasked Mylar Nameplate (with "CE" Mark)
  • F1 Assembly Position
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
  • Double Shielded Bearings
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
    Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ10P2DJ Zoro # G0401385
UPC # 786382116071 Country of Origin Mexico

Dimensions

Overall Length 22 5/16 in Shaft Dia. 7/8 in
Shaft Length 7 1/4 in Length Less Shaft 15 in
Body Dia. 9.4 in Bolt Circle Dia. 7 1/4 in
Height 11 3/16 in

Details

Item Pump Motor Motor Design 3-Phase
Motor Enclosure Design Open Dripproof HP 10
Nameplate RPM 1,765 Frame 215TCZ
Voltage 208-230/460V AC Motor Mounting Position Horizontal
Nominal Efficiency 91.7 % Motor Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft
Ins. Class F Motor Frame Material Rolled Steel
Motor Service Factor 1.15 Full Load Amps 26.3-23.8/11.9
Phase Three Hz 60/50
Motor Bearings Ball Motor Mounting Type Rigid Base
Part Winding Start Capable No Motor Shaft Design 7/8 in
Usable @ 208V Yes Bearing Protection Shaft Shields
NEMA Design B Duty Cycle Continuous
No. of Speeds 1 Max. SF Amps 0-27.2/13.6
Regreasable Bearings Regreasable Bearings Conduit Box Position F1
Max. Ambient Temp. 40 Degrees C Weight 105 lb
