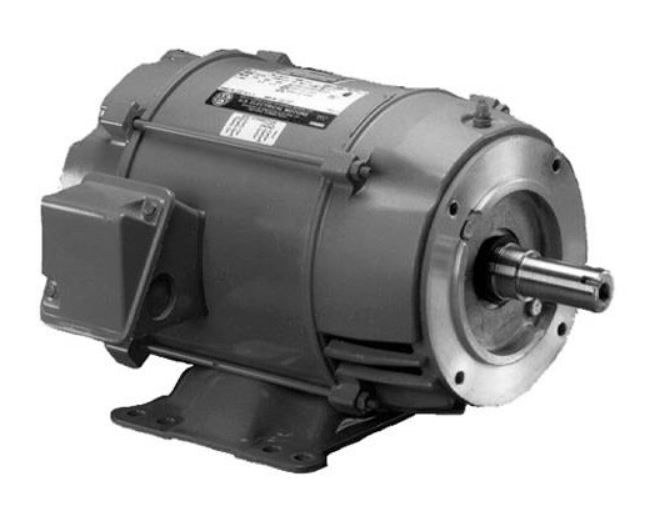

* Image is for reference only

DJ10P1DM US Motors 10HP 3600RPM 213JM ODP 208-230/460V 3 Phase Model CS23

SKU: DJ10P1DM
$827.78
Sale $827.78
Description

Model: CS23

Buy US Motors DJ10P1DM by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame
  • Aluminum End Shields 140-250, Cast Iron End Shields 280-320
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Premasked Mylar Nameplate (with "CE" Mark)
  • F1 Assembly Position
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
  • Double Shielded Bearings
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
    Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ10P1DM Zoro # G0401324
UPC # 786382092139 Country of Origin Mexico

Dimensions

Overall Length 20 13/16 in Shaft Length 7 1/4 in
Shaft Dia. 7/8 in Length Less Shaft 13 1/2 in
Height 11 3/16 in Bolt Circle Dia. 7 1/4 in
Body Dia. 9.4 in

Details

Item Pump Motor Motor Design 3-Phase
Motor Enclosure Design Open Dripproof HP 10
Nameplate RPM 3,507/2,865 Frame 213JM
Voltage 208-230/460V AC Motor Mounting Position Horizontal
Hz 60/50 Ins. Class F
Motor Frame Material Rolled Steel Motor Mounting Type Rigid Base
Motor Bearings Ball Full Load Amps 24.1/12.0
Motor Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft Motor Service Factor 1.15
Phase Three Nominal Efficiency 89.5 %
No. of Speeds 1 Max. SF Amps 28.0/14.0
Conduit Box Position F1 Duty Cycle Continuous
Max. Ambient Temp. 40 Degrees C Motor Shaft Design Keyed
Regreasable Bearings Regreasable Bearings Bearing Protection Shaft Shields
Weight 90 lb NEMA Design B
Part Winding Start Capable No
