Home » DJ10C2K21P US Motors 10HP 1800RPM 215JP ODP 230V 1 Phase Model BB13
DJ10C2K21P US Motor 10hp - Pump Motors - Square One Electric

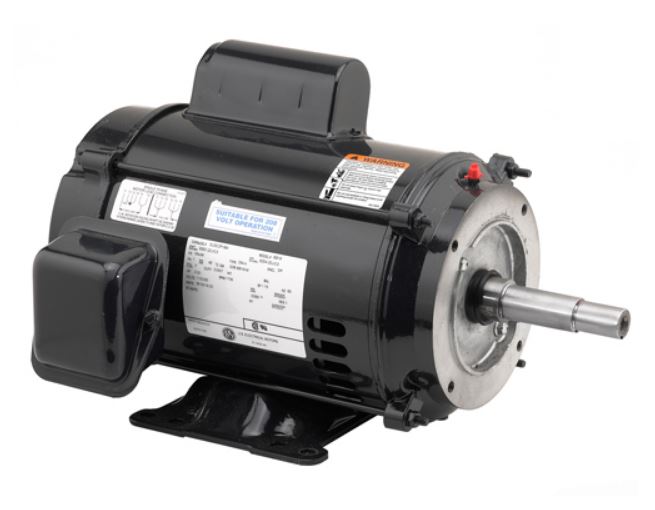

* Image is for reference only

DJ10C2K21P US Motors 10HP 1800RPM 215JP ODP 230V 1 Phase Model BB13

SKU: DJ10C2K21P
$1,190.03
Sale $1,190.03
Description

Model: BB13

Buy US Motors DJ10C2K21P by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Rolled Steel Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Shaft Slinger On Pulley End
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ10C2K21P Zoro # G2203127
UPC # 786382022303 Country of Origin Mexico

Dimensions

Shaft Dia. 1 1/4 in

Details

Motor Design Permanent Split Capacitor Item Pool and Spa Pump Motor
Phase Single HP 10
Voltage 230V AC Frame 215JP
Motor Enclosure Design Open Dripproof Motor Mounting Type Rigid Base
Full Load Amps 42.2 No. of Speeds 1
Ins. Class F Motor Bearings Ball
Motor Shaft Rotation CCW Motor Service Factor 1.15
Hz 60 Hz Motor Sub Application Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft, Dirt and Moisture are Minimal
Max. Ambient Temp. 40 Degrees C Nameplate RPM 1,740
Motor Application Pump Motor Frame Material Rolled Steel
Bearing Protection Shaft Shields NEMA Design L
Conduit Box Position F1 Weight 115 lb
Part Winding Start Capable No Max. SF Amps 48.0
