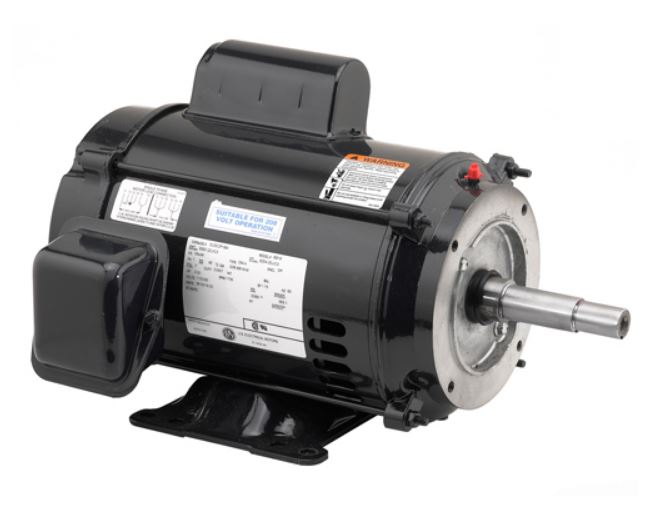

DJ10C2K21M US Motors 10HP 1800RPM 215JM ODP 230V 1 Phase Model BB22
SKU:
DJ10C2K21M
Regular price
$1,190.03
Regular price
Sale
Sale price
$1,190.03
- Description
- SPECS:
Description
Model: BB22
Buy US Motors DJ10C2K21M by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
- For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
Used where dirt and moisture are minimal.
This single phase motor features:
- Class F Insulation
- Rolled Steel Frame
- Oversized Ball Bearings w/Locked Shaft End Construction
- Reversible Rotation
- F1 Assembly Position
- Shaft Slinger On Pulley End
- Lifting Provisions
- “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
| MFR # | DJ10C2K21M | Zoro # | G2198114 |
| UPC # | 786382022297 | Country of Origin | Mexico |
Dimensions
| Shaft Dia. | 7/8 in | ||
Details
| Item | Pump Motor | Motor Design | Capacitor-Start/Run |
| Phase | Single | HP | 10 |
| Voltage | 230V AC | Frame | 215JM |
| Motor Enclosure Design | Open Dripproof | Motor Mounting Type | Rigid Base |
| Full Load Amps | 42.2 | Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1.15 | Motor Shaft Rotation | CCW |
| Motor Bearings | Ball | Ins. Class | F |
| Motor Application | Pump | Hz | 60 Hz |
| Nameplate RPM | 1,740 | No. of Speeds | 1 |
| Motor Frame Material | Rolled Steel | Conduit Box Position | F1 |
| Weight | 115 lb | NEMA Design | L |
| Bearing Protection | Shaft Shields | Max. SF Amps | 48.0 |
| Part Winding Start Capable | No |
