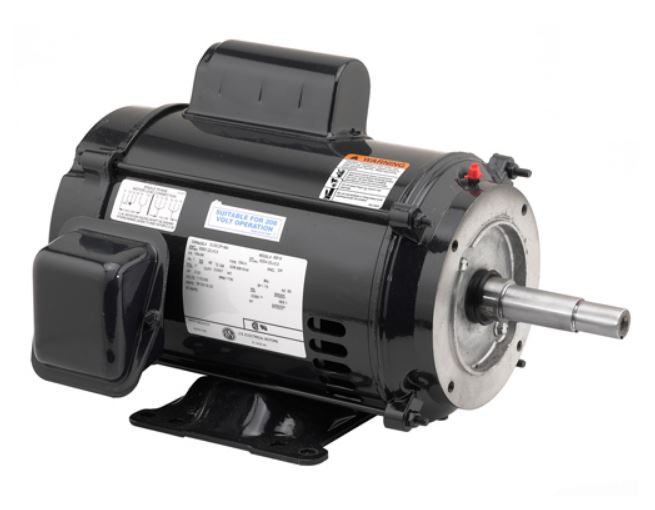

* Image is for reference only

DJ10C1K21P US Motors 10HP 3600RPM 215JP ODP 230V 1 Phase Model BB12

SKU: DJ10C1K21P
$1,290.81
Sale $1,290.81
Description

Model: BB12

Buy US Motors DJ10C1K21P by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Rolled Steel Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Shaft Slinger On Pulley End
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.



SPECS:
MFR # DJ10C1K21P Zoro # G2199277
UPC # 786382022280 Country of Origin Mexico

Dimensions

Shaft Dia. 1 1/4 in

Details

Motor Design Capacitor-Start/Run Item Pump Motor
Phase Single HP 10
Frame 215JP Voltage 230V AC
Motor Enclosure Design Open Dripproof Motor Mounting Type Rigid Base
Full Load Amps 40.0 Motor Frame Material Rolled Steel
Hz 60 Hz Motor Service Factor 1.15
Ins. Class F Max. Ambient Temp. 40 Degrees C
Nameplate RPM 3,500 No. of Speeds 1
Motor Application Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft, Dirt and Moisture are Minimal Motor Bearings Ball
Motor Shaft Rotation CCW Conduit Box Position F1
NEMA Design L Weight 173 lb
Bearing Protection Shaft Shields Part Winding Start Capable No
Max. SF Amps 45.0
