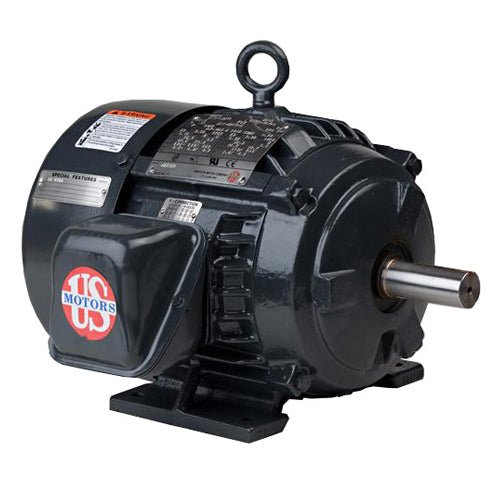

CW2V2E2 US Motors 2HP 1800RPM 145T TEFC 230/460V 3 Phase Model GM32
SKU:
CW2V2E2
Regular price
$562.76
Regular price
Sale
Sale price
$562.76
Description
Description
Model GM32
For use in Cooling Tower, Evaporative Condenser and other commercial and industrial applications requiring protection from harsh operating conditions with high humidity.
Assembly: F2
About This 3 Phase Motor:
INVERTER GRADE® Motors with Insulation that Exceeds the NEMA® MG-1 Part 31 Standard
Double Dip & Bake, 100% Solids. Polyester Insulation on Windings
Class F Insulation, 40° Ambient
Cast Iron Frame & Outlet Box
Cast Iron Bearing Caps
Double Sealed bearings
Double Drilled Feet to Accommodate Mounting Flexibility
Sealed Bracket-to-Frame Registers & Leads
Stainless Steel Nameplate & Zinc Plated Hardware
1.15 Service Factor
Rotor Balance better than 0.08 in/sec Inverter Compatible: Exceeds NEMA® MG-1 Part 31 (10:1 Variable Torque)
NEMA® DEsign B PErformance on 60 Hertz Sine Wave Power
Meets IEC 34-5 Classification IP55
Space Heater (115v)
Includes CORRO-DUTY® Motor PAint and Rotor Treatment
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
