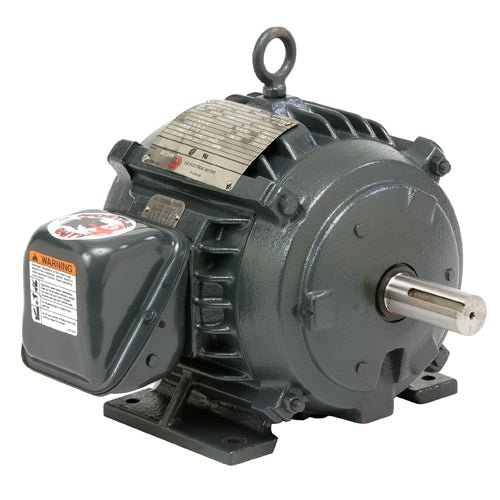

CVW30V2B6 US Motors 30HP 1800RPM 286T TEFC 230/460V 3 Phase Model GM20
CVW30V2B6 US Motors 30HP 1800RPM 286T TEFC 230/460V 3 Phase Model GM20
In stock
Regular price
$4,421.33
Regular price
$6,599.00
Sale
Sale price
$4,421.33
Couldn't load pickup availability
Product details
- SKU CVW30V2B6
- GTIN 786382136697
- Brand US Motors
- Phase 3
- RPM 1201-1800
- HP / KW 30
- Application Cooling Tower
- Frame 284/6T
- Enclosure TOTALLY ENCLOSED
- Voltage 230/460V
Model GM20
- For use in Cooling Tower, Evaporative Condenser and other commercial and industrial applications requiring protection from harsh operating conditions with high humidity.
- Assembly: W6
About This 3 Phase Motor:
- INVERTER GRADE® Motors with Insulation that Exceeds the NEMA® MG-1 Part 31 Standard
- Double Dip & Bake, 100% Solids. Polyester Insulation on Windings
- Class F Insulation, 40° Ambient
- Cast Iron Frame & Outlet Box
- Cast Iron Bearing Caps
- Double Sealed bearings
- Double Drilled Feet to Accommodate Mounting Flexibility
- Sealed Bracket-to-Frame Registers & Leads
- Stainless Steel Nameplate & Zinc Plated Hardware
- 1.15 Service Factor
- Rotor Balance better than 0.08 in/sec Inverter Compatible: Exceeds NEMA® MG-1 Part 31 (10:1 Variable Torque)
- NEMA® DEsign B PErformance on 60 Hertz Sine Wave Power
- Meets IEC 34-5 Classification IP55
- Space Heater (115v)
- Includes CORRO-DUTY® Motor PAint and Rotor Treatment
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
