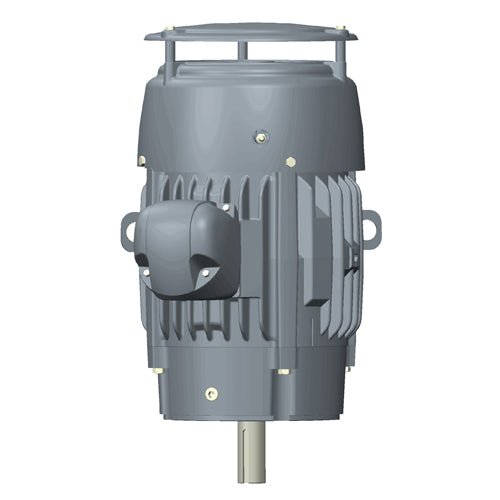

C10P2DCR US Motors 10HP 1800RPM 215TC TEFC 208-230/460V 3 Phase Model DW77

Model DW77

This 3 phase motor is equipped with:

• General Purpose Three Phase, Totally Enclosed Fan Cooled (TEFC)
• CORRO-DUTY NEMA Premium Efficient, Vertical C-Face
• Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
• Steel Frame
• Corrosion Resistant Mill & Chemical Duty Paint
• Stainless Steel Nameplate (with ""CE"" Mark)
• Shaft Slinger On Both Ends For IP54 Protection
• Regreasable Bearings 140 Frame & Up
• 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power
• 50 Hz. rated at 190/380V
• 1.15 Service Factor @ 60 Hz.
• Special Balance (< 0.08 In/Sec Vibration)
• Double Shielded Bearings
• Cast Iron Canopy Cap/Drip Cover
• Condensation Drain With Threaded Brass Breather Plug
• Oversized Cast Iron Conduit Box - 1 Size Larger Than NEMA Standard
• Zinc Plated Hardware
• 60/50 Hz rated with no derate on HP; 230/460 volt 60 Hz ratings operate on 190/380 volt 50 Hz, 460V 60 Hz ratings operate on 380V 50 Hz; Full 60 & 50 Hz data on Nameplate

 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
