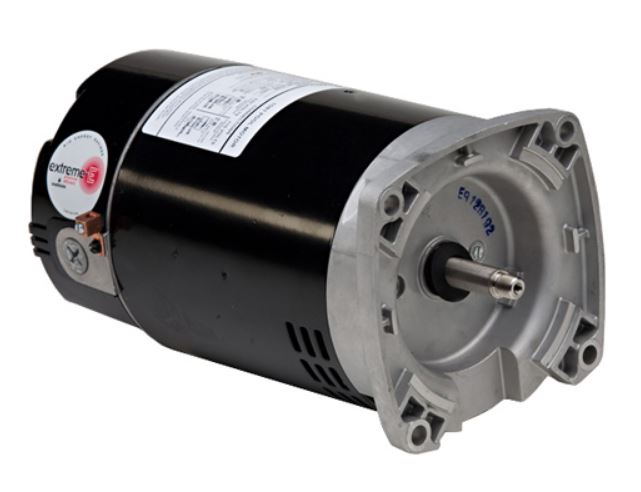

ASB858 US Motors 2HP 3450RPM 56Y ODP 1 Phase Model K063DFP5153023J
SKU:
ASB858
Regular price
$359.81
Regular price
Sale
Sale price
$359.81
- Description
- SPECS:
Description
Model: K063DFP5153023J
Buy US Motors ASB858 by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
Aqua-Shield PRO Switchless Design features:
- Shaft Threads - 1/2-20 UNF-2A
- Two Compartment
- 50°C Ambient
- 1081 Design
- Continuous Duty
- Sealed Ball Bearings
- Class B Insulated
- 300 Series Stainless Steel Shaft
- Thermally Protected
- 5.5” Diameter Frame
- Triple Bearing Protection
- Optimized internal airflow design minimizes
heat and moisture buildup inside the motor- Internal bearing cover protects the drive/
pump end ball bearing from water and
debris that may occur inside of the motor- Three additional layers of drive/pump
end bearing protection:
- Double Sealed Ball Bearing
- Lip Seal
- Water Slinger
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
Dimensions
| Shaft Dia. | 1/2 in |
| Shaft Length | 1/2 in |
| Length Less Shaft | 13 3/4 in |
| Bolt Circle Dia. | 7 1/8 in |
| Overall Length | 14 7/16 in |
Details
| Item | Pump Motor |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Dripproof |
| HP | 2 1/4 |
| Nameplate RPM | 3,450 |
| Frame | 56Y |
| Motor Shaft Rotation | CW |
| Voltage | 115/230V AC |
| Motor Mounting Type | Face |
| Motor Application | Remove |
| Phase | Single |
| Motor Bearings | Ball |
| Motor Thermal Protection | None |
| Motor Service Factor | 1 |
| Ins. Class | B |
| Full Load Amps | 10.8/21.6 |
| Hz | 60 Hz |
| Shaft Material | Stainless Steel |
| Standards | CSA Certified, UL Listed |
| Duty Cycle | Continuous |
| Motor Shaft Design | Threaded |
| Max. Ambient Temp. | 50 Degrees C |
| Weight | 33 lb |
| Motor Mounting Position | Face |
| No. of Speeds | 1 |
