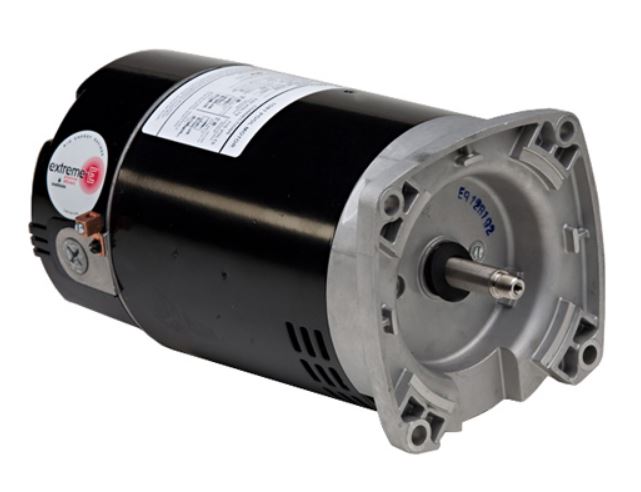

ASB841 US Motors 1.5HP 3450RPM 56Y ODP 1 Phase Model K063DFU5157023J
SKU:
ASB841
Regular price
$296.01
Regular price
Sale
Sale price
$296.01
- Description
- SPECS:
Description
Model: K063DFU5157023J
Buy US Motors ASB841 by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
Aqua-Shield PRO Switchless Design features:
- Shaft Threads - 1/2-20 UNF-2A
- Two Compartment
- 50°C Ambient
- 1081 Design
- Continuous Duty
- Sealed Ball Bearings
- Class B Insulated
- 300 Series Stainless Steel Shaft
- Thermally Protected
- 5.5” Diameter Frame
- Triple Bearing Protection
- Optimized internal airflow design minimizes
heat and moisture buildup inside the motor- Internal bearing cover protects the drive/
pump end ball bearing from water and
debris that may occur inside of the motor- Three additional layers of drive/pump
end bearing protection:
- Double Sealed Ball Bearing
- Lip Seal
- Water Slinger
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
- Motor Phase 1 ph
- Motor Horsepower 1.65 hp
- Synchronous Rpm 3600 rpm
- Country of Origin MEX
- Motor Supply Voltage 115/208-230 V
- Frame Size 56Y
- Enclosure Type ODP (Open Drip-Proof)
- Frequency Rating 60 Hz
- Base RPM 3450 rpm
- Duty Condition Type Continuous Duty
- Mounting Type Square Flange
- Thermal Protection Automatic Reset
- Motor Poles 2
- Description Pool owners will experience more fun and less worry with our U.S. Motors® brand pool and spa motors. Our hard-working pool and spa motors help keep chemicals balanced, water clean and filter efficiency maximized. Whether you're looking for a new pool and spa motor or a replacement pool pump motor, you can depend on our products for energy efficiency and quality. Our motors work with a variety of brands so we have a solution for you. View our pool and spa pump motor replacement guide.
- Description Keyword 1 hp
- Overall Length C Dimension 13.7 in
- Type Of Bearing Ball
- Service Factor 1.65
- Insulation Class B
- Standards Met EE, NEMA Premium
- Weight 25 lbs
- Harmonization Code 8501.40.6040
- Manufacturer Upc Number 786382110529
- UPC_NO 786382110529
- Manufacturer Catalog Click here
- Manufacturer Product Page Click here
- Model K063DFU5157023J
- Motor Category Pool/Spa Motor
- Max Allowable Current 7.2 to 7.6 A, 14.4 A
- Product Types AC Motors
- Torque 23.99 ft-lbs
- Opposite Drive End Bearing Ball
- Product Type General Purpose Motors
