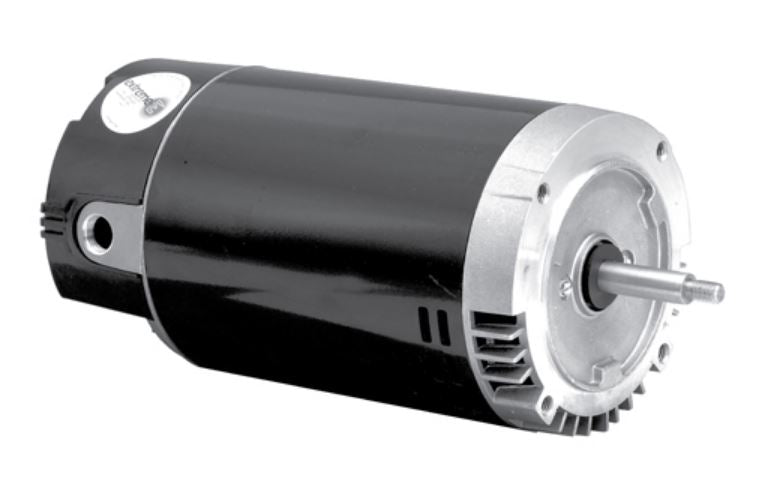

ASB817 US Motors 3HP 3450RPM 56C ODP 1 Phase Model K063DZK5194023J
SKU:
ASB817
Regular price
$553.74
Regular price
Sale
Sale price
$553.74
- Description
- SPECS:
Description
Model: K063DZK5194023J
Buy US Motors ASB817 by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
Aqua-Shield PRO Switchless Design features:
- Premium Energy Eff., Total Horsepower Rated
- Shaft Keyed
- Two Compartment
- 50°C Ambient
- 1081 Design
- Continuous Duty
- 300 Series Stainless Steel Shaft
- Thermally Protected
- Optimized internal airflow design minimizes
heat and moisture buildup inside the motor- Internal bearing cover protects the drive/
pump end ball bearing from water and
debris that may occur inside of the motor- Three additional layers of drive/pump
end bearing protection:
- Double Sealed Ball Bearing
- Lip Seal
- Water Slinger
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
Dimensions
| Shaft Length | 2 1/8 in |
| Shaft Dia. | 5/8 in |
| Length Less Shaft | 12 1/2 in |
Details
| Item | Pool and Spa Pump Motor |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Dripproof |
| HP | 3 9/20 |
| Motor Service Factor | 1 |
| RPM Range | 3,001-3,600 |
| Nameplate RPM | 3,450 |
| Frame | 56C |
| Motor Shaft Rotation | CCWSE |
| Voltage | 208-230V AC |
| Phase | Single |
| Motor Mounting Type | Face |
| Full Load Amps | 15.2-14.0 |
| Ins. Class | B |
| Finish | Unfinished |
| Ambient Temperature | 50 Degrees C |
| Motor Flange Material | Aluminum |
| Motor Bearings | Ball |
| Shaft Material | Stainless Steel |
| Shaft | Keyed |
| Hz | 60 Hz |
| Standards | CSA (156060), UL (E22922) |
| Max. Ambient Temp. | 50 Degrees C |
| Motor Application | Pump |
| Motor Sub Application | Pool and Spa Pump |
| Voltage Compatibility | 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC |
| Motor Thermal Protection | Auto |
| Replacement For | 12109, Mfr. No. B817, SK1302V1 |
| Usable @ 208V | Yes |
| Motor Shaft Design | Keyed |
| No. of Speeds | 1 |
| Bearing Protection | Water Slingers |
| Duty Cycle | Continuous |
| Conduit Box Location | Exterior |
| Weight | 36 lb |
| Usable @ 200V | No |
