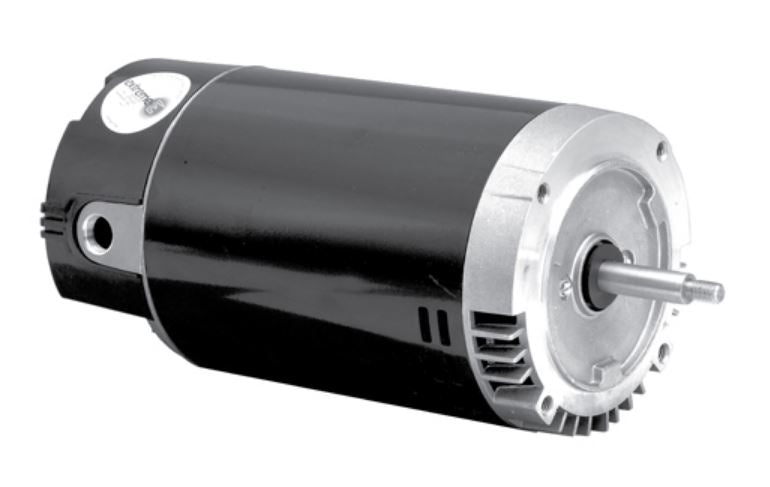

ASB654 US Motors 1.5HP 3450RPM 56J ODP 1 Phase Model K063DGH5169023J

SKU: ASB654
Regular price $318.13
Regular price Sale Sale price $318.13
Description

Model: K063DGH5169023J

Buy US Motors ASB654 by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

Aqua-Shield PRO Switchless Design features:

  • Premium Energy Eff., Total Horsepower Rated
  • Shaft Threaded
  • Two Compartment
  • 50°C Ambient
  • 1081 Design
  • Continuous Duty
  • 300 Series Stainless Steel Shaft
  • Thermally Protected
  • Optimized internal airflow design minimizes
    heat and moisture buildup inside the motor
  • Internal bearing cover protects the drive/
    pump end ball bearing from water and
    debris that may occur inside of the motor
  • Three additional layers of drive/pump
    end bearing protection:
    - Double Sealed Ball Bearing
    - Lip Seal
    - Water Slinger



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
  • 1.65 THP (Total Horsepower)
  • 3450 RPM, 14.0/7.0 amps, 115/230V 60hz. Single Phase
  • NEMA 56J frame (no base), 5/8" diameter threaded stainless steel shaft
  • Overload Protection: Auto. Class B insulation, 6.5" body dia.
  • Non-Reversible - CCW Rotation facing the shaft
  • C-Face Mount, Ball Bearings, Open Drip Proof (ODP)
  • Sealed ball bearings
  • Wiring diagram on motor name plate
  • 1 year warranty

Swimming pool pump motor. Commonly found on in-ground pool pumps such as Hayward Super Pump, Maxflo, Super II and many other pumps requiring a 56J frame motor.

US Model K063DGH5169023J
Century Equivalent B654
Replaces EB654
