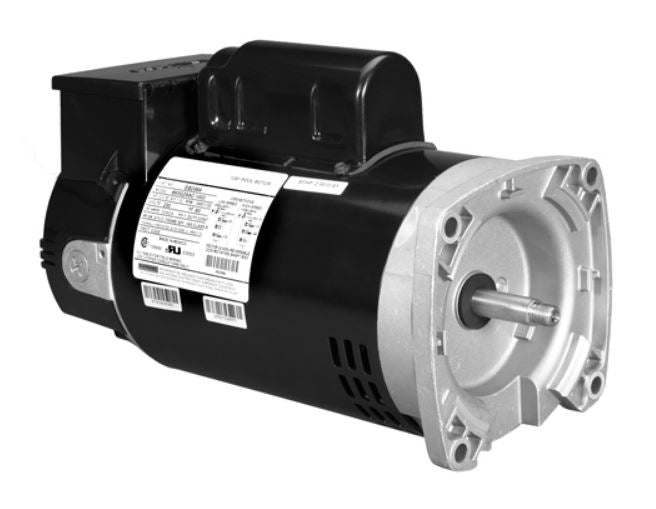

ASB2984T US Motors 2.60/0.43THP 3450/1725RPM 56Y ODP 1 Phase Model B063ACB1045023J
SKU:
ASB2984T
Regular price
$637.95
Regular price
Sale
Sale price
$637.95
- Description
- SPECS:
Description
Model: B063ACB1045023J
Buy US Motors ASB2984T by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
Variable Speed Motor/Control features:
- Shaft Threads – (Square Flange) 1/2-20 UNC-2A or
(C-Flange) 7/16-20 UNF-2A- 50°C Ambient
- Triple Bearing Protection
- 1081 Design
- Continuous Duty
- Class B Insulated
- Sealed Ball Bearings
- 90% Motor Efficiency
- 300 Series Stainless Steel Shaft
- Brushless Permanent Magnet Motor
- Variable RPM, 1035-3450
- California Title 20 Compliant
- Fully Integrated Motor Control
- Program for Various Flows (Speeds)
- Four Custom Flow Settings
- Freeze Sensor
- Vacuum Override
- Programmable Pump Priming Setting
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
Dimensions
| Length Less Shaft | 14 1/4 in |
| Overall Length | 14 15/16 in |
| Shaft Dia. | 1/2 in |
| Body Dia. | 7.1 in |
Details
| Item | Pump Motor |
| HP | 2 3/5 |
| Nameplate RPM | 3,450/1,725 |
| Voltage | 230V AC |
| Motor Mounting Type | Rigid Base |
| Full Load Amps | 10.6/2.4 |
| Frame | 56Y |
| Motor Bearings | Ball |
| Motor Service Factor | 1 |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Dripproof |
| Phase | Single |
| No. of Speeds | 2 |
| Motor Application | Remove |
| Motor Shaft Rotation | CW |
| Hz | 60 Hz |
| Ins. Class | B |
| Max. Ambient Temp. | 50 Degrees C |
| Motor Mounting Position | Square Flange |
| Motor Shaft Design | Threaded |
| Standards | CSA Certified, UL Listed |
| Motor Thermal Protection | None |
| Shaft Material | Stainless Steel |
| Duty Cycle | Continuous |
| Weight | 36 lb |
