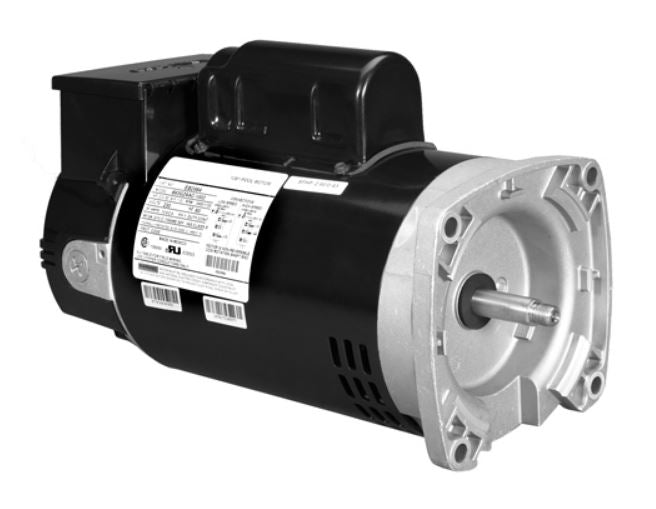

ASB2983T US Motors 2.25/0.38THP 3450/1725RPM 56Y ODP 230V 1 Phase Model B063ACA1044023J
SKU:
ASB2983T
Regular price
$543.54
Regular price
Sale
Sale price
$543.54
- Description
- SPECS:
Description
Model: B063ACA1044023J
Buy US Motors ASB2983T by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
Variable Speed Motor/Control features:
- Shaft Threads – (Square Flange) 1/2-20 UNC-2A or
(C-Flange) 7/16-20 UNF-2A- 50°C Ambient
- Triple Bearing Protection
- 1081 Design
- Continuous Duty
- Class B Insulated
- Sealed Ball Bearings
- 90% Motor Efficiency
- 300 Series Stainless Steel Shaft
- Brushless Permanent Magnet Motor
- Variable RPM, 1035-3450
- California Title 20 Compliant
- Fully Integrated Motor Control
- Program for Various Flows (Speeds)
- Four Custom Flow Settings
- Freeze Sensor
- Vacuum Override
- Programmable Pump Priming Setting
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
- Motor Phase 1 ph
- Motor Horsepower 2-1/4 hp
- Synchronous Rpm 1800 rpm / 3600 rpm
- Country of Origin MEX
- Motor Supply Voltage 230 V
- Frame Size 56Y
- Enclosure Type ODP (Open Drip-Proof)
- Frequency Rating 60 Hz
- Base RPM 1725 rpm - 3450 rpm
- Duty Condition Type Continuous Duty
- Mounting Type Square Flange
- Thermal Protection Automatic Reset
- Motor Poles 2|4
- Overall Length C Dimension 14.4 in
- Insulation Class B
- Standards Met EE, NEMA Premium
- Weight 33 lbs
- Harmonization Code 8501.40.6040
- Model B063ACA1044023J
- Max Allowable Current 2.1 A, 9.2 A
- Product Types AC Motors
- Torque 12.2 ft-lbs
- Opposite Drive End Bearing 6203
- Product Type General Purpose Motors
