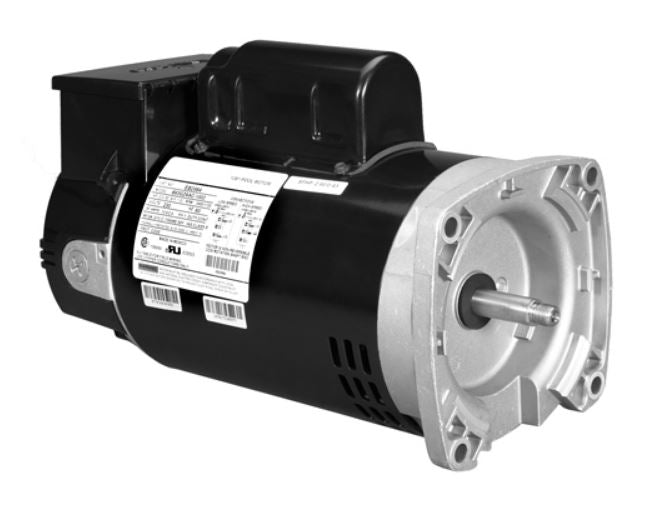

ASB2980T US Motors 1.25/0.20THP 3450/1725RPM 56Y ODP 230V 1 Phase Model B063ABY1042023J

SKU: ASB2980T
Regular price $586.83
Description

Model: B063ABY1042023J

Buy US Motors ASB2980T by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

Variable Speed Motor/Control features:

  • Shaft Threads – (Square Flange) 1/2-20 UNC-2A or
    (C-Flange) 7/16-20 UNF-2A
  • 50°C Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • Sealed Ball Bearings
  • 90% Motor Efficiency
  • 300 Series Stainless Steel Shaft
  • Brushless Permanent Magnet Motor
  • Variable RPM, 1035-3450
  • California Title 20 Compliant
  • Fully Integrated Motor Control
  • Program for Various Flows (Speeds)
  • Four Custom Flow Settings
  • Freeze Sensor
  • Vacuum Override
  • Programmable Pump Priming Setting



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
  • Motor Phase 1 ph
  • Motor Horsepower 1-1/4 hp / 0.20 hp
  • Synchronous Rpm 1800 rpm / 3600 rpm
  • Country of Origin MEX
  • Motor Supply Voltage 230 V
  • Frame Size 56Y
  • Enclosure Type ODP (Open Drip-Proof)
  • Frequency Rating 60 Hz
  • Base RPM 1725 rpm - 3450 rpm
  • Duty Condition Type Continuous Duty
  • Mounting Type Square Flange
  • Thermal Protection Automatic Reset
  • Motor Poles 2|4
  • Description Pool owners will experience more fun and less worry with our U.S. Motors® brand pool and spa motors. Our hard-working pool and spa motors help keep chemicals balanced, water clean and filter efficiency maximized. Whether you're looking for a new pool and spa motor or a replacement pool pump motor, you can depend on our products for energy efficiency and quality. Our motors work with a variety of brands so we have a solution for you. View our pool and spa pump motor replacement guide.
  • Insulation Class B
  • Standards Met EE, NEMA Premium
  • Weight 29 lbs
  • Harmonization Code 8501.40.3040
  • Manufacturer Upc Number 786382113117
  • Model B063ABY1042023J
  • Max Allowable Current 1.2 A, 5.8 A
  • Product Types AC Motors
  • Torque 5.848 ft-lbs
  • Opposite Drive End Bearing 6203
  • Product Type General Purpose Motors
