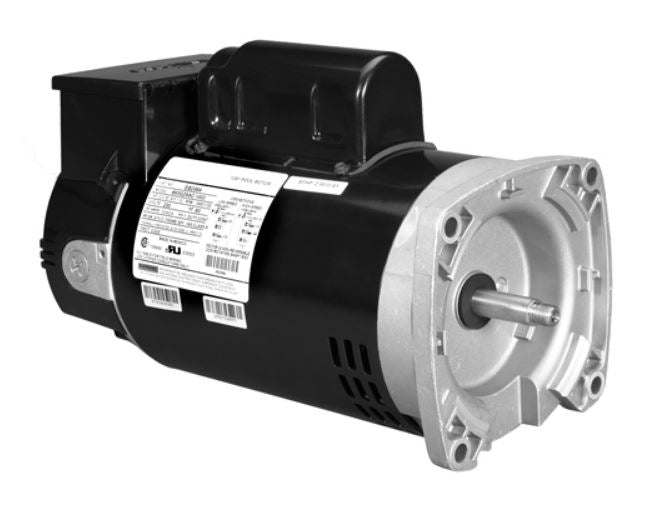

ASB2977T US Motors 2.25/0.30THP 3450/1725RPM 56J ODP 1 Phase Model B063ACE1048023J

Model: B063ACE1048023J

Buy US Motors ASB2977T by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

• Shaft Threads – (Square Flange) 1/2-20 UNC-2A or
  (C-Flange) 7/16-20 UNF-2A
• 50°C Ambient
• Triple Bearing Protection
• 1081 Design
• Continuous Duty
• Class B Insulated
• Sealed Ball Bearings
• 90% Motor Efficiency
• 300 Series Stainless Steel Shaft
• Brushless Permanent Magnet Motor
• Variable RPM, 1035-3450
• California Title 20 Compliant
• Fully Integrated Motor Control
• Program for Various Flows (Speeds)
• Four Custom Flow Settings
• Freeze Sensor
• Vacuum Override
• Programmable Pump Priming Setting

 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

• Motor Phase 1 ph
• Motor Horsepower 2-1/4 hp
• Synchronous Rpm 1800 rpm / 3600 rpm
• Country of Origin MEX
• Motor Supply Voltage 230 V
• Frame Size 56J
• Enclosure Type ODP (Open Drip-Proof)
• Frequency Rating 60 Hz
• Base RPM 1725 rpm - 3450 rpm
• Duty Condition Type Continuous Duty
• Mounting Type C-Face Flange
• Thermal Protection Automatic Reset
• Motor Poles 4
• Description Pool owners will experience more fun and less worry with our U.S. Motors® brand pool and spa motors. Our hard-working pool and spa motors help keep chemicals balanced, water clean and filter efficiency maximized. Whether you're looking for a new pool and spa motor or a replacement pool pump motor, you can depend on our products for energy efficiency and quality. Our motors work with a variety of brands so we have a solution for you. View our pool and spa pump motor replacement guide.
• Insulation Class B
• Standards Met EE, NEMA Premium
• Weight 33 lbs
• Harmonization Code 8501.40.6040
• Manufacturer Upc Number 786382113179
• UPC_NO 786382113179
• Model B063ACE1048023J
• Max Allowable Current 2.1 A, 9.2 A
• Product Types AC Motors
• Torque 36.51 ft-lbs
• Opposite Drive End Bearing 6203
• Product Type General Purpose Motors
