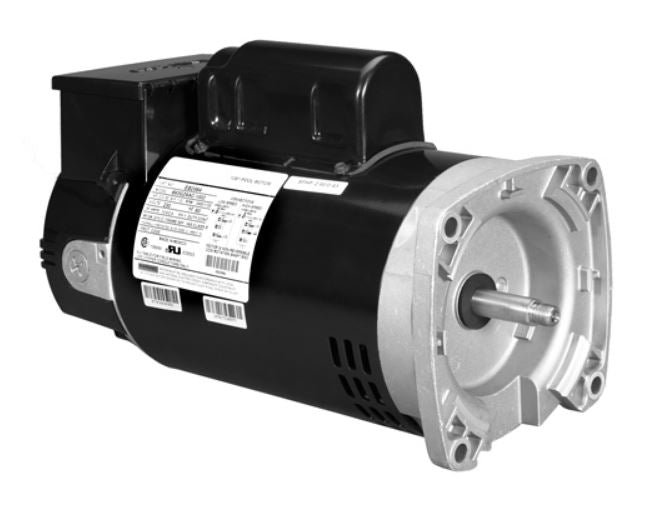

ASB2975T US Motors 1.65/0.20THP 3450/1725RPM 56J ODP 230V 1 Phase Model B063ACD1047023J

SKU: ASB2975T
Regular price $489.10
Regular price Sale Sale price $489.10
Description

Model: B063ACD1047023J

Buy US Motors ASB2975T by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

Variable Speed Motor/Control features:

  • Shaft Threads – (Square Flange) 1/2-20 UNC-2A or
    (C-Flange) 7/16-20 UNF-2A
  • 50°C Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • Sealed Ball Bearings
  • 90% Motor Efficiency
  • 300 Series Stainless Steel Shaft
  • Brushless Permanent Magnet Motor
  • Variable RPM, 1035-3450
  • California Title 20 Compliant
  • Fully Integrated Motor Control
  • Program for Various Flows (Speeds)
  • Four Custom Flow Settings
  • Freeze Sensor
  • Vacuum Override
  • Programmable Pump Priming Setting



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
  • Motor Phase 1 ph
  • Motor Horsepower 1 hp / 1/8 hp
  • Synchronous Rpm 1800 rpm / 3600 rpm
  • Country of Origin MEX
  • Motor Supply Voltage 230 V
  • Frame Size 56J
  • Enclosure Type ODP (Open Drip-Proof)
  • Frequency Rating 60 Hz
  • Base RPM 1725 rpm - 3450 rpm
  • Duty Condition Type Continuous Duty
  • Mounting Type C-Face Flange
  • Thermal Protection Automatic Reset
  • Motor Poles 4
  • Insulation Class B
  • Standards Met EE, NEMA Premium
  • Weight 31 lbs
  • Harmonization Code 8501.40.6040
  • UPC_NO 786382113162
  • Model B063ACD1047023J
  • Max Allowable Current 1.4 A, 7.4 A
  • Product Types AC Motors
  • Torque 6.014 ft-lbs
  • Opposite Drive End Bearing 6203
  • Product Type General Purpose Motors
