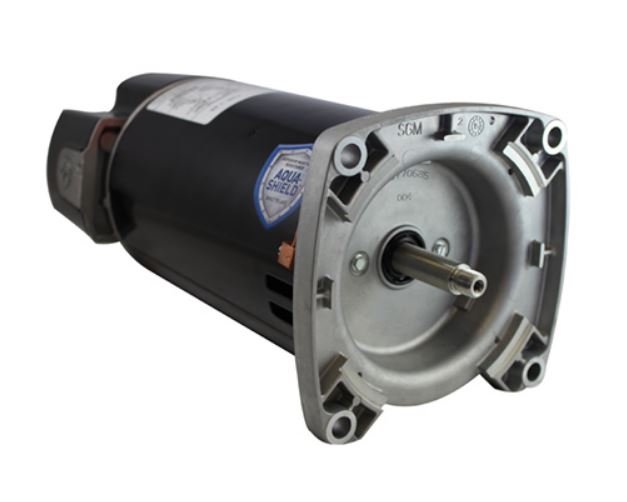

AQC165 US Motors 1.5HP 3450RPM 48Y ODP 1 Phase Model T055CRS1610013J

Model: T055CRS1610013J

Buy US Motors AQC165 by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

• High Efficiency, Capacitor Start/Run Design
• Shaft Threads - 1/2-20 UNF-2A
• Two Compartment
• 50°C Ambient
• 1081 Design
• Continuous Duty
• Sealed Ball Bearings
• Class B Insulated
• 300 Series Stainless Steel Shaft
• Thermally Protected
• 5.5” Diameter Frame
• Triple Bearing Protection
• Optimized internal airflow design minimizes
  heat and moisture buildup inside the motor
• Internal bearing cover protects the drive/
  pump end ball bearing from water and
  debris that may occur inside of the motor
• Three additional layers of drive/pump
  end bearing protection:
  - Double Sealed Ball Bearing
  - Lip Seal
  - Water Slinger

 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

• 1 1/2 HP 3450 RPM 48Y, 15.2/7.6 amps, 115/230V 60hz. Capacitor Start/Run
• 1.65 THP (Total Horsepower)
• NEMA 48Y frame (no base), 1/2" diameter threaded stainless steel shaft
• Overload Protection: Auto - Service Factor 1.0, Class B insulation
• Non-Reversible - CCW Rotation facing the shaft
• Square Flange Mount (1081 design), Ball Bearings, Open Drip Proof (ODP)

Swimming pool pump motor. Standard 1081 pump duty motor. Stainless steel shaft. Sealed ball bearings. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. 1 year warranty. Model T055CRS1610013J
