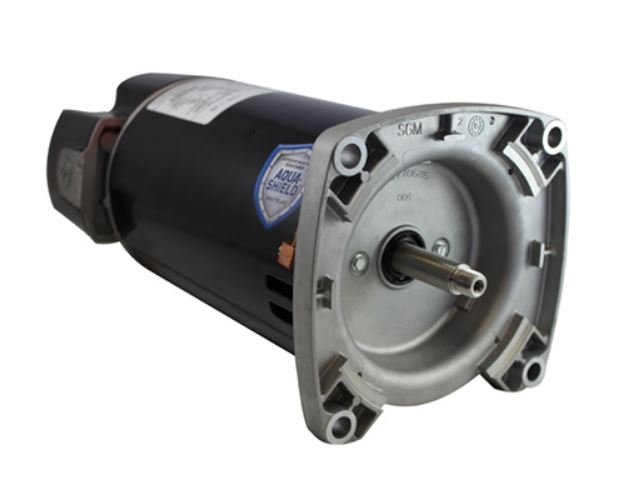

AQC125 US Motors 1HP 3450RPM 48Y ODP 115/230V 1 Phase Model T055CRR1609013J

In stock
SKU: AQC125
Regular price $347.06
Regular price $518.00 Sale Sale price $347.06

Product details

  • SKU AQC125
  • GTIN 786382117887
  • Brand US Motors
  • Phase 1
  • RPM 1801-3600
  • HP / KW 1
  • Application Pool & Spa / Jet Pump
  • Frame 48Y/YZ
  • Enclosure OPEN
  • Voltage 115/208-230V
  • Flange Square

Model: T055CRR1609013J

Buy US Motors AQC125 by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

Aqua-Shield PRO Switchless Design features:

  • High Efficiency, Capacitor Start/Run Design
  • Shaft Threads - 1/2-20 UNF-2A
  • Two Compartment
  • 50°C Ambient
  • 1081 Design
  • Continuous Duty
  • Sealed Ball Bearings
  • Class B Insulated
  • 300 Series Stainless Steel Shaft
  • Thermally Protected
  • 5.5” Diameter Frame
  • Triple Bearing Protection
  • Optimized internal airflow design minimizes
    heat and moisture buildup inside the motor
  • Internal bearing cover protects the drive/
    pump end ball bearing from water and
    debris that may occur inside of the motor
  • Three additional layers of drive/pump
    end bearing protection:
    - Double Sealed Ball Bearing
    - Lip Seal
    - Water Slinger



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
