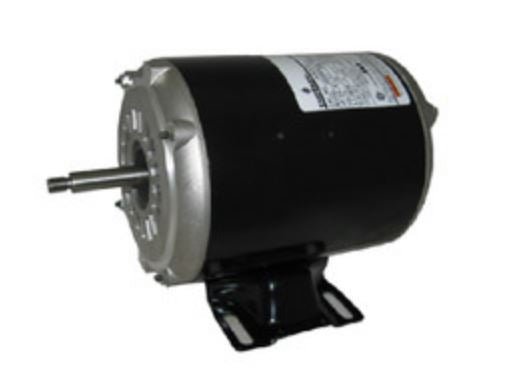

AGL10FL1H2 US Motors 1HP 3600RPM 48Y ODP 1 Phase S055PJZ7610013J

Name: AGL10FL1H2 US Motors 1HP 3600RPM 48Y ODP 1 Phase S055PJZ7610013J
Brand: US
SKU: AGL10FL1H2
Price: 170.98 USD
Availability: InStock

SKU: AGL10FL1H2

$170.98

Sale $170.98

Description
SPECS:

Description

Reliable U.S. Motors AGL10FL1H2 makes owning a pool or spa more fun with less worry. These 1hp pump motors enhance your pool's performance by assisting with balancing the chemistry; cleaning water; and improving energy efficiency.

More pump motor specifications include:

Model: S055PJZ7610013J
Thru Bolt Mount
Class B Insulated
Thermally protected
3 O’clock conduit
1081, 1563 & 1795 Design
Sealed ball bearings
Shaft Threaded
Rigid Base
Single Speed, Less Rigid Base

SPECS:

Dimensions

Shaft Dia.	1/2 in
Shaft Length	1 7/8 in
Length Less Shaft	9 5/8 in

Details

Item	Pool and Spa Pump Motor
Motor Design	Split-Phase
Motor Enclosure Design	Open Dripproof
HP	1
RPM Range	3,001-3,600
Motor Service Factor	1
Nameplate RPM	3,450
Frame	48Y
Motor Shaft Rotation	CCWSE
Voltage	115V AC
Phase	Single
Full Load Amps	10.0
Motor Mounting Type	Rigid Base
Motor Sub Application	Pool and Spa Pump
Standards	CSA (156060), UL (E22922)
Motor Thermal Protection	Auto
Motor Flange Material	Aluminum
Motor Application	Pump
Voltage Compatibility	115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Bearings	Ball
Ambient Temperature	40 Degrees C
Finish	Unfinished
Hz	60 Hz
Max. Ambient Temp.	50 Degrees C
Shaft	Threaded
Ins. Class	B
Usable @ 208V	No
Duty Cycle	Continuous
Replacement For	H911, Mfr. No. BV90, ODB1102
Weight	12 lb
Motor Shaft Design	Threaded
Max. SF Amps	10.0
No. of Speeds	1
Usable @ 200V	No
