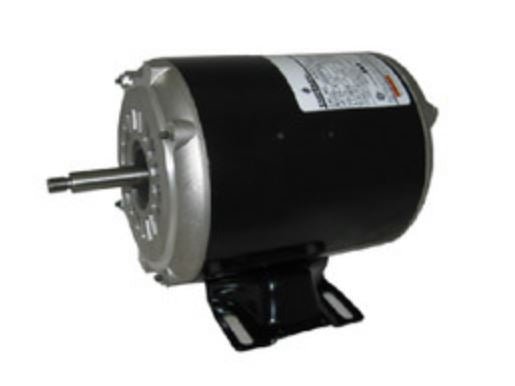

AGH15FL2CS US Motor 1.5hp - Pool Pump Motor - Square One Electric

* Image is for reference only

AGH15FL2CS US Motors 1.5HP 3600RPM 48Y ODP 1 Phase C055JKY4534013J

SKU: AGH15FL2CS
$242.43
Sale $242.43
Description

Reliable U.S. Motors AGH15FL2CS makes owning a pool or spa more fun with less worry. These 1.5hp pump motors enhance your pool's performance by assisting with balancing the chemistry; cleaning water; and improving energy efficiency.

More pump motor specifications include:

  • Model C055JKY4534013J
  • Thru Bolt Mount
  • Class B Insulated
  • Thermally protected
  • 3 O’clock conduit
  • 1081, 1563 & 1795 Design
  • Sealed ball bearings
  • Shaft Threaded
  • Rigid Base
  • Two Speed, Soft Start
SPECS:

Dimensions

Shaft Dia. 1/2 in
Shaft Length 1 3/4 in
Length Less Shaft 10 3/16 in
Body Dia. 5.1 in
Overall Length 13 3/16 in
