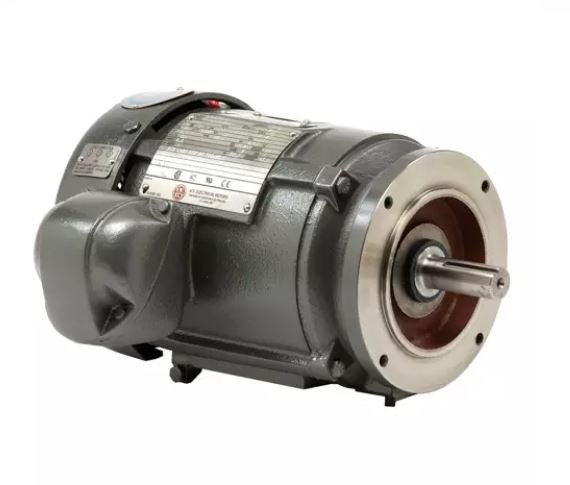

8P2P2CCR2 US Motors 2HP 1800RPM 145TC TEFC 460V 3 Phase Model CG54

SKU: 8P2P2CCR2
$813.38
$1,214.00 Sale $813.38

Product details

  • SKU 8P2P2CCR2
  • GTIN 786382009335
  • Brand US Motors
  • Phase 3
  • RPM 1201-1800
  • HP / KW 2
  • Application IEEE 841 Petro Chem
  • Frame 143/5TC
  • Enclosure TOTALLY ENCLOSED
  • Voltage 460V
  • Flange C-Face Footless

Share

Description Reviews

Model CG54

Buy US Motors 8P2P2CCR2 by Nidec (Emerson) for a reliable AC electrical motor that lasts.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries

This three phase motor is equipped with:

  • Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
  • All Cast Iron Construction
  • Corrosion Resistant Mill & Chem Duty Paint (500 Hour Salt Spray Test)
  • 40°C Ambient, NEMA®† Design B Performance (Sine Wave Power)
  • VBXX®† Bearing Isolators By Inpro/Seal On Both Ends For IP55 Bearing Protection
  • Same Size Regreasable Open Bearings, Brass Breathers/Drains



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
