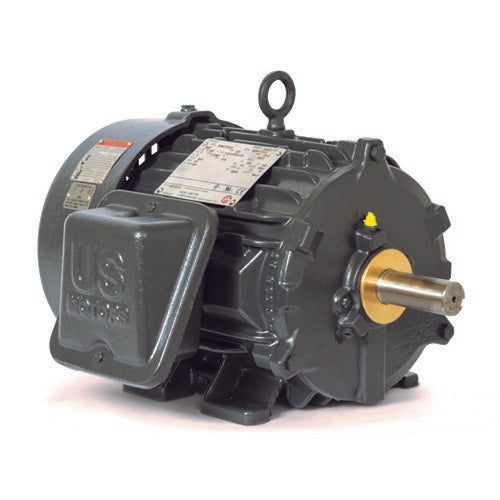

IEEE 841 Plus NEMA Premium Efficient Motor for constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries.
Each unit ships brand new with a manufacturer's warranty.
Features:
• Inverter Grade® Insulation System (Meets NEMA®† MG-1 Part 31)
• Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
• All Cast Iron Construction
• Corrosion Resistant Mill & Chem Duty Paint (500 Hour Salt Spray Test)
• Stainless Steel Nameplate & Zinc Plated Hardware
• 40°C Ambient, NEMA®† Design B Performance (Sine Wave Power)
• VBXX®† Bearing Isolators By Inpro/Seal®† On Both Ends For IP56 Bearing
Protection
• Same Size Regreasable Open Bearings, Stainless Steel Breathers/Drains
• 5 Year Warranty (3 Years on Inverter Power)
• External Grounding Provision, Epoxy Coated Rotor
• 20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter
Power
• Precision Balance (< 0.05 In/Sec Vibration)
• 1.15 SF On Sine Wave / 1.0 SF On Inverter Power
• Meets or Exceeds IEEE Std 841™-2021
• Conversion Kits: C&D Flange, Drip Cover Kit, Shaft Grounding Ring (Nonhazardous
Locations only)
• Self-Certified Class I, Division 2, Groups A, B, C, & D
