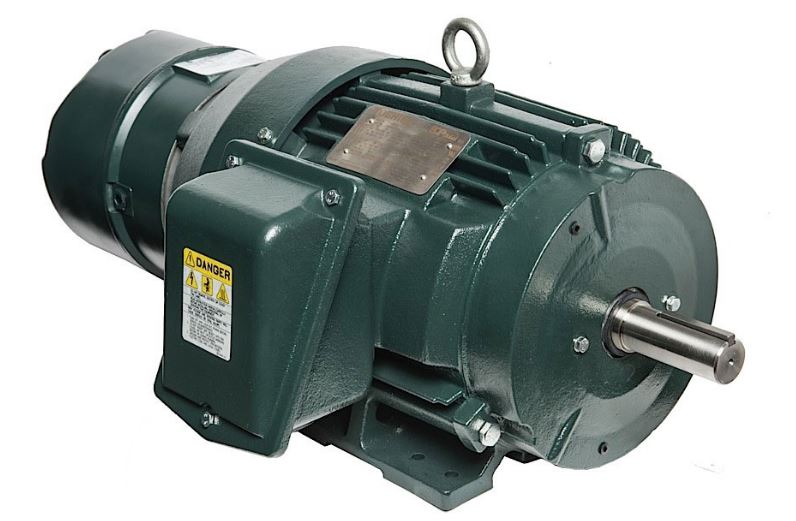

0156SDBA42A-P Toshiba Brake Motor 15hp 1200rpm 284TC TEFC 230/460V 3 Phase

SKU: 0156SDBA42A-P
Regular price $6,128.08
Regular price $9,884.00 Sale Sale price $6,128.08

Product details

  • SKU 0156SDBA42A-P
  • Brand Toshiba
  • Phase 3
  • RPM 901-1200
  • HP / KW 15
  • Application Brake Motor
  • Frame 284/6TC
  • Enclosure TOTALLY ENCLOSED
  • Voltage 230/460V
  • Flange C-Face Footed

Toshiba’s NEMA premium brake motors are designed to meet the needs of general holding purposes and built to withstand the toughest conditions with highest efficiency, torque ratings and greater reliability. These premium efficient EQP Global® Brake Motors are IP23-rated and suitable for indoor and outdoor use.



Standard Features:

  • Totally Enclosed Fan Cooled
  • NEMA® Premium efficiency
  • C-Face Footed & Footless
  • 230/460 or 575 V 60 Hz
  • 190/380 V 50Hz
  • Three-Phase
  • 1.15 Service Factor
  • Class F insulation
  • IP55
  • 304 Stainless Steel Nameplate
  • Exceeds Insulation Requirements of NEMA MG1 Part 31 (Inverter Duty)
  • Stamped Steel Conduit Box on EQPIII
  • Cast Iron Conduit Box
  • Cast Iron Fan Cover
  • Cast Iron Frame & Brackets
  • V-Ring Seal on Drive End

Applications:

  • Conveyors
  • Gear Reducers
  • Door Lift Operators
  • Material Handling
  • Baggage Handling
  • Carousels & Palletizing
  • Holding Applications
