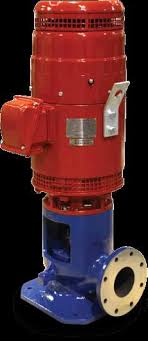

VHP0154FP Fire Teco Westinghouse Pump Motor 15HP 1800RPM 254TP WPI 3 Phase

Each unit ships new with manufacturer’s warranty.

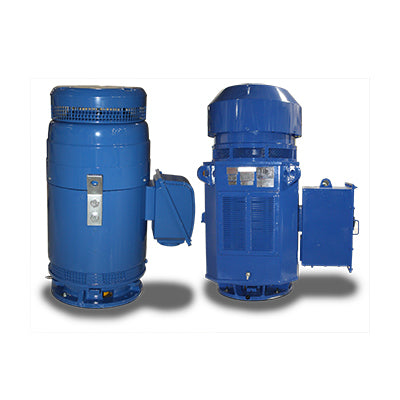

Vertical Hollow Shaft WPI Fire Pump

TECO-Westinghouse Fire Pump Motors are fully compliant with the requirements stipulated by the Federal Government documented in the Energy Independence and Security Act (EISA) of 2007.  As a result of this compliance and certified by UL for Fire Pump service, all TECO-Westinghouse Fire Pump motors will have a name plate stating “UL Fire Pump”.  All Fire Pump motors can be installed in applications where contaminants are minimal, per NFPA 20.

• Frame: High grade Cast Iron
• Flange Bracket: (Shield) High grade Cast Iron, Dimensions as NEMA MG1-18-238 (P-Base)
• Upper Bracket: High grade Cast Iron (Frame Size 324TP - 5810P Design Including Oil Tank)
• External Fan: Aluminum
• Vertical Splash Cover: Steel Plate
• Shaft: 1045 Carbon Hollow Steel Shaft
• Thrust Bearing (Upper): 213TP - 286TP - Regreasable Angular Contact with Polyrex EM Grease 324TP - 5810P - Oil Lubricated Angular Contact or Spherical with Site Glass up to 300%
• Guide Bearing (Lower): 213TP - 286TP - Grease Pre-Packed, Double Shielded Rolling Bearings 324TP - 5810P - Bracket Mounting, Vacuum De-gassed, High Quality Open Bearings with Grease Relief Valve
• Lubricant: Guide Bearing: Mineral Oil Li-Base Grease (Multemp SRL) or Polyrex EM Grease Thrust Bearing: Frame Size 324TP-449TP. Recommended Oil Turbine Oil with Viscosity 300 S.S.U. at 100°F
• Terminal Housing: Cast Iron, Larger Size, can be Set 90° apart, Threaded for External Conduit entrance
• Lead Terminal: 210TP - 405TP - 12 Leads (PWS on 230V) , WYE Delta on 230V or 460V 444TP and Larger - 6 Leads (PWS on 460V)
• Iron Core: High grade, Insulated, Cold-Rolled Electro-Magnetic Steel Plate (C5)
• Stator Winding: Pre-Formed Random Wound, Made Of Heavy, High Pulse Endurance, Polyester Enameled Copper Wire for VFD, & MICA; MV 449 Frames and up, MICA & Glass Insulated Form Wound Coil.
• Stator Insulation: Class F Insulation System with Class B Temperature Rise
• Additional Parts: Standard with Gib Key, Non-Reverse Ratchet and Heavy Duty Beryllium Balls
• Grounding Terminal Located Inside of Terminal Housing and on P-Base
• Power Conditions: Voltage: ±10%, Frequency: ±5%, and ±10% Max. of Combined Voltage and Frequency, but Frequency Variation Does Not Exceed ±5%
• Environment Conditions: Place: WP1, Non-Hazardous, ambient Temperature:-15°C - 40°C, Relative Humidity: Less Than 80% RH (Non-Condensation), Altitude: Less Than 3,300 ft TEFC - Hazardous, CSA certified for Class 1, Div 2, Group B,C,D, Temp T3 minimum.
• Operating Conditions For Direct Coupling Direction of Rotation Counterclockwise (View From Top Side); Bi-Directional without NRR Starting Method Direct On-Line; Part Wind Start; VFD; Wye/Delta on Low Voltage
