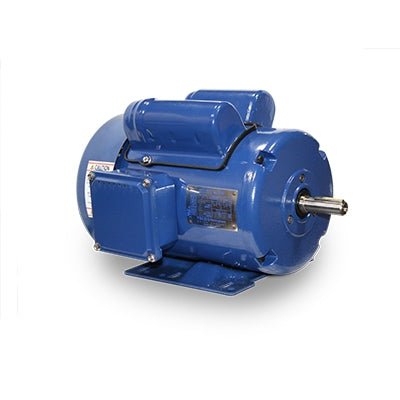

SPHT0/24 Teco-Westinghouse Motor 1/4HP 1800RPM 56 TEFC 115-208/230V 1 Phase

Buy SPHT0/24 Teco-Westinghouse Motor for a durable single phase machine that can be used on fans, pumps, compressors, and HVAC applications. Quite operation and minimal vibration - Teco-Westinghouse has a long reputation for manufacturing quality products at affordable prices!

Features include:

• Capacitor Start, Capacitor Run
• Class F Insulation
• Automatic Reset Overload
• Class B Temperature Rise
• Designed for 40˚C Ambient Temperature(1)
• Designed for 3300 ft. Elevation(2)
• Bi-Directional Rotation
• Rolled Steel Frame / Cast Aluminum Terminal Box
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
• Paint Color: Blue - Munsell 5 PB 3/8
• Double Shielded Bearings Pre-Packed with Lithium Base Grease
• No Terminals; Lead End Peel-Off Insulation
• Grounding Terminal Inside Main Box
