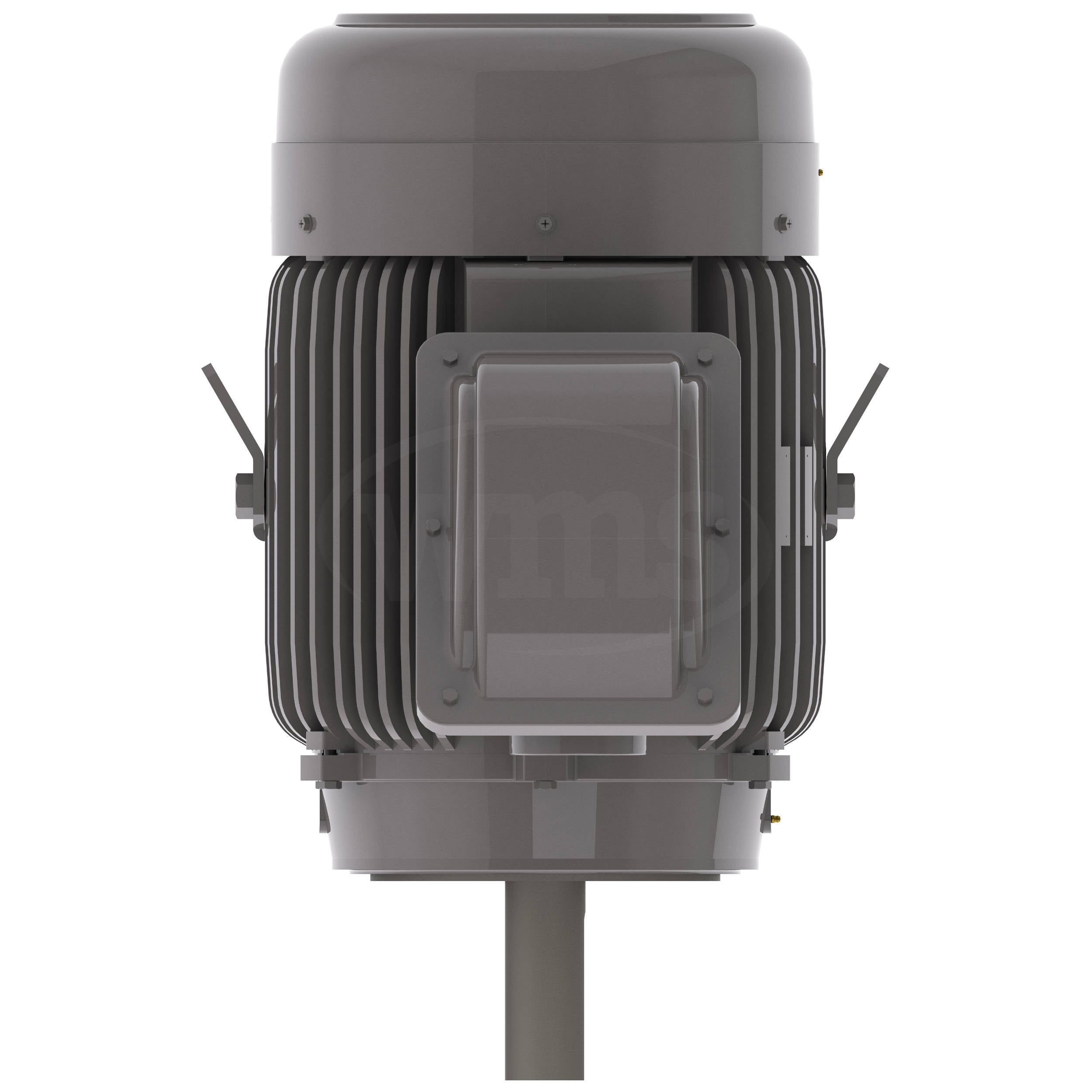

NPV0052C Teco Westinghouse Motor 5HP 3600RPM 182/184TC TEFC 3 Phase

Each unit ships new with manufacturer’s warranty.

Applications:

• Fans & Blowers
• Pumps
• Crushers
• Compressors
• Mixers
• Conveyors

• Totally Enclosed Fan Cooled (IP54 Rating)
• Meets or Exceeds NEMA Premium Efficiency Levels
• Department of Energy Efficiency Certificate #CC002A
• 36 Month Warranty from Date of Manufacture
• 1.15 Service Factor – Continuous
• Class F Insulation with Phenolic Alkyd Resin Varnish – 2 Dips and Bakes
• Class B Temperature Rise
• Oversized Main Conduit Box Rotatable in 90 Degree Increments – Fully Gasketed; F1 Mounted.
• Designed for 40°C Ambient Temperature
• Designed for 3300 ft. Elevation
• Factory Self Certified for Class 1, Div. 2, Groups B, C, D; Temp Code T3C, 400T and Below
• Bidirectional Rotation
• Cast Iron Frame, End Brackets, Pressed Steel Fan Cover and Conduit Box
• Dual Drilled Feet - Longer Frames
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
• Paint Color: Blue Gray – Munsell 7.5 BG 3.5/ .05
• Grounding Terminal Inside Main Box
• Stainless Steel Nameplate
• Inverter Duty Magnet Wire Capable of Withstanding Voltage Spikes of Up to 2200 Volts
• VFD Rated per NEMA MG1, Part 31.4.4.2
• 9 Leads - 5 hp and Below
  12 Leads 7.5 hp - 125 hp
  6 Leads - 150 hp and Larger
• CE Mark on Nameplate, U.L. Recognized and CSA Approved
