Each unit ships new with manufacturer’s warranty.

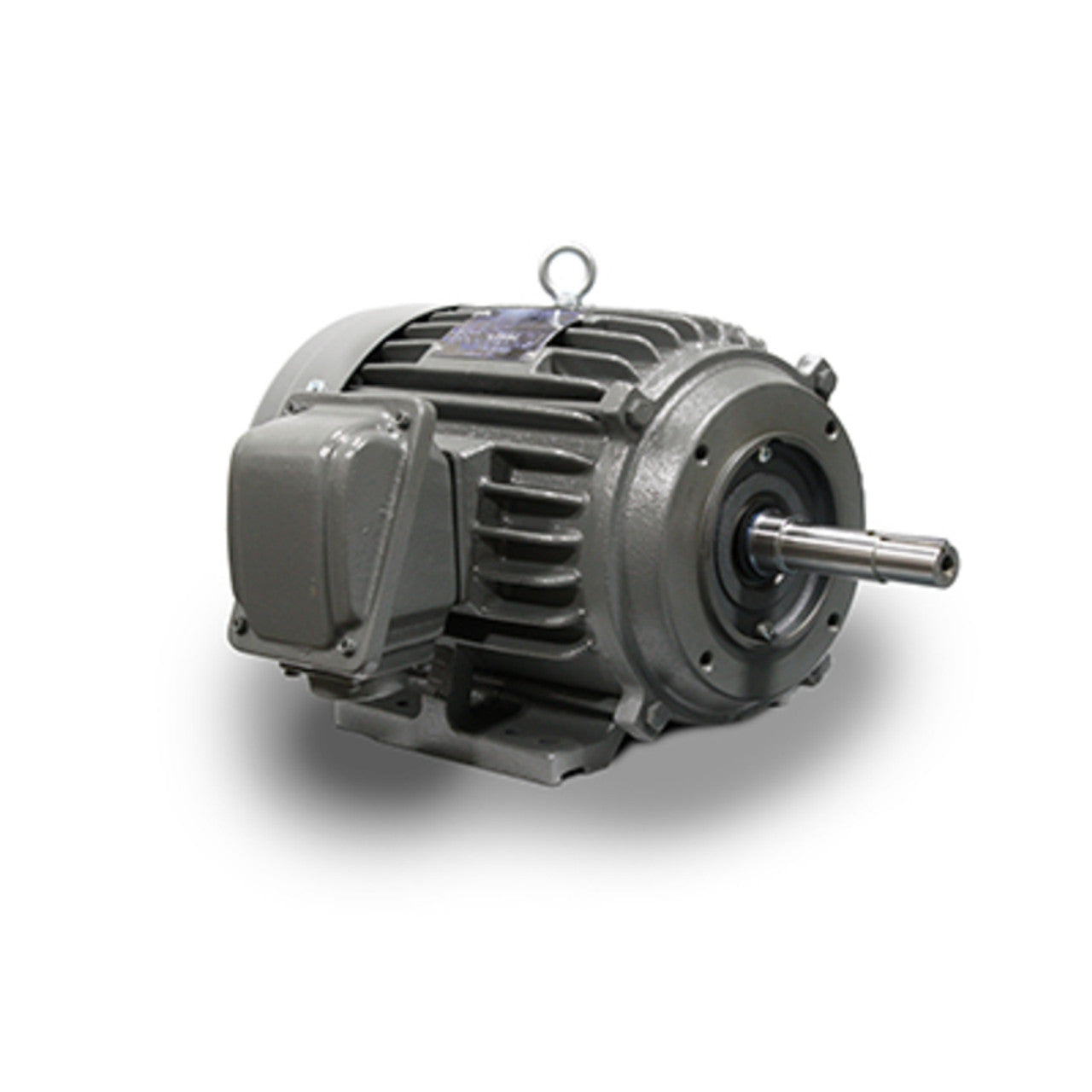

Teco Westinghouse close coupled pump motor for water treatment and other industrial applications.
Features:
• Voltage: 230/460V (Usable on 208V)
• Cast Iron Frame, End Brackets & Fan Cover and Main Conduit Box
• 1045 Carbon Steel Shaft
• CSA Certified for Class I, Div. 2, Groups B, C & D - Temp Code T3C Minimum
• Class F Insulation
• Class B Temperature Rise
• Grounding Terminal Inside Main Conduit Box
• Designed for 40° C Ambient Temperature
• Bi-Directional Rotation
• Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
• Paint Color: Premium - Light Gray - Munsell N5.0 / High Efficient - Dark Gray - Munsell 7.SB 3.5/0.5
• Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140JP/JM - 280JP/JM (Non-regreasable)
• High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM for F# 280JP/JM (2P), 320JP/JM and Larger
• Automatic Grease Discharge Fittings on Regreasable Models
• Rubber Dust Flinger on DE for F# 140JP/JM - 280JP/JM
• Labyrinth Type Metal Flinger on Both Ends for F# 280JP/JM (2P), 320JP/JM and Larger
• Cast Iron Inner and Outer Bearing Caps for Frame# 280JP/JM (2P), 320JP/JM and Larger
• Stainless Steel Nameplate
• New Dual Column Design Nameplate as Standard (60/50 Hz)
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 10:1 Variable Torque, 5:1 Constant Torque
• 9 Leads for 5 HP and Smaller; 12 Leads for 7.5 HP to 125 HP
• Motors are U.L. Recognized, CSA Approved and CE Marked
