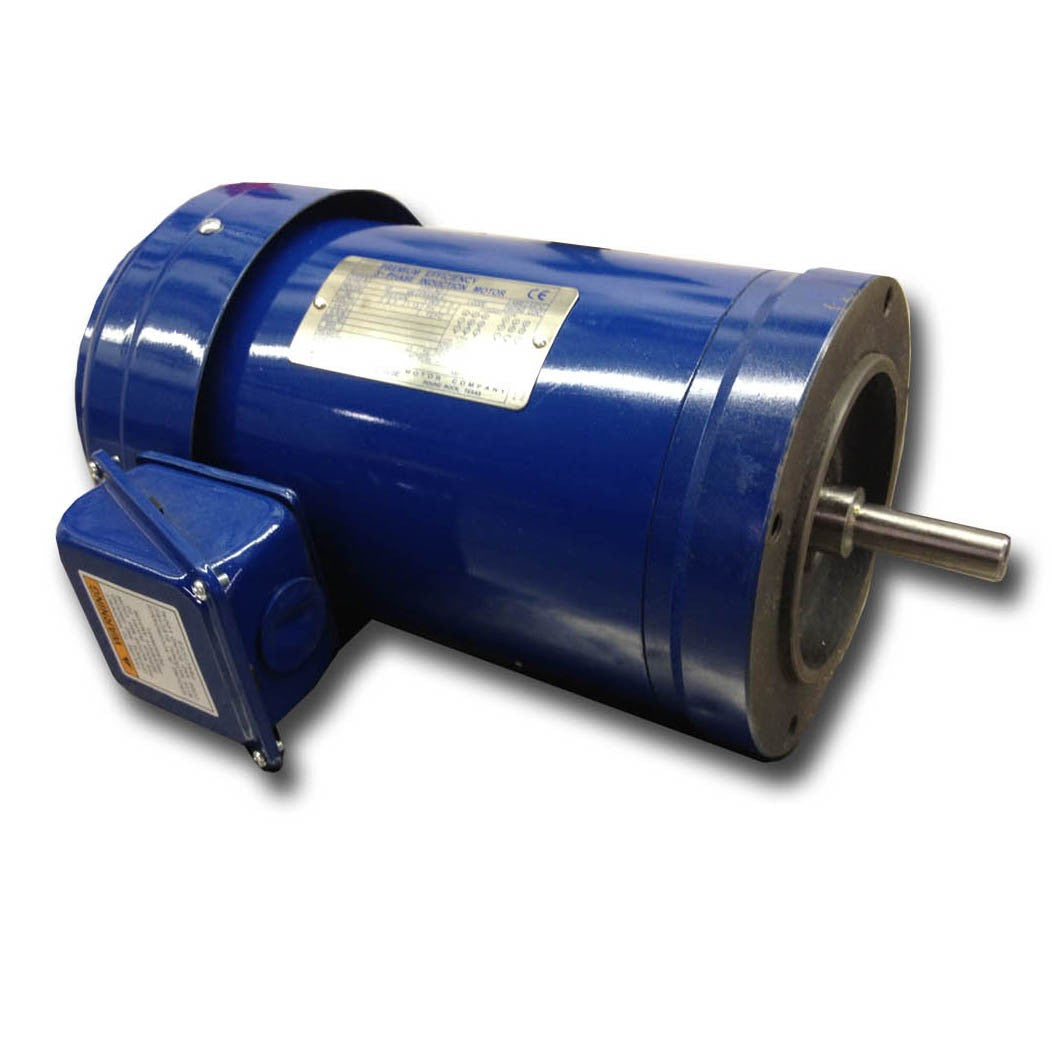

GHV0/54C Teco Westinghouse Motor 1/2HP 1800RPM 56C TEFC 208-230/460V 3 Phase

In stock
SKU: GHV0/54C
$203.55
$345.00 Sale $203.55

Product details

  • SKU GHV0/54C
  • Brand Teco-Westinghouse
  • Phase 3
  • RPM 1201-1800
  • HP / KW 1/2 (.5)
  • Application General Purpose
  • Frame 56C
  • Enclosure TOTALLY ENCLOSED
  • Voltage 208-230/460V
  • Flange C-Face Footless

Share

Description Reviews

GHV0/54C Teco-Westinghouse motor features a rolled steel frame, carbon steel shaft, and oversized junction box with 9 connection leads. The conduit box is rotatable in 90 degree increments for mounting convenience.

GHV0/54C is a footless c-face motor.

This Teco motor can be used with a variable speed drive; inverter duty speed range is 20:1 variable torque and 10:1 constant torque.

An totally enclosed fan cooled motor (TEFC) means that the motor is protected from relatively dirty or moist conditions, and can be used outside. Commercial and industrial application for this electrical machine include:

    • Pumps
    • Fans
    • Blowers
    • Compressors
