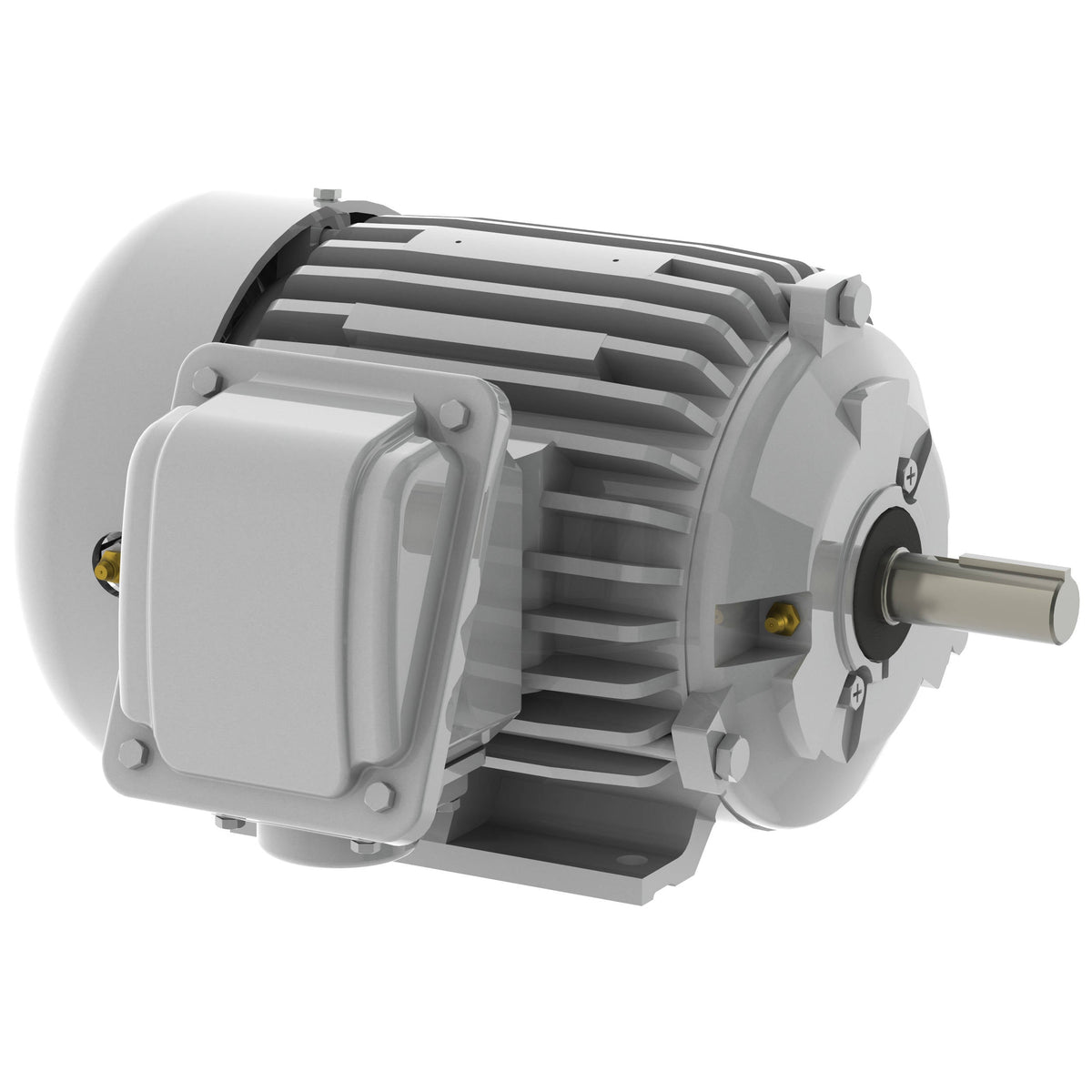

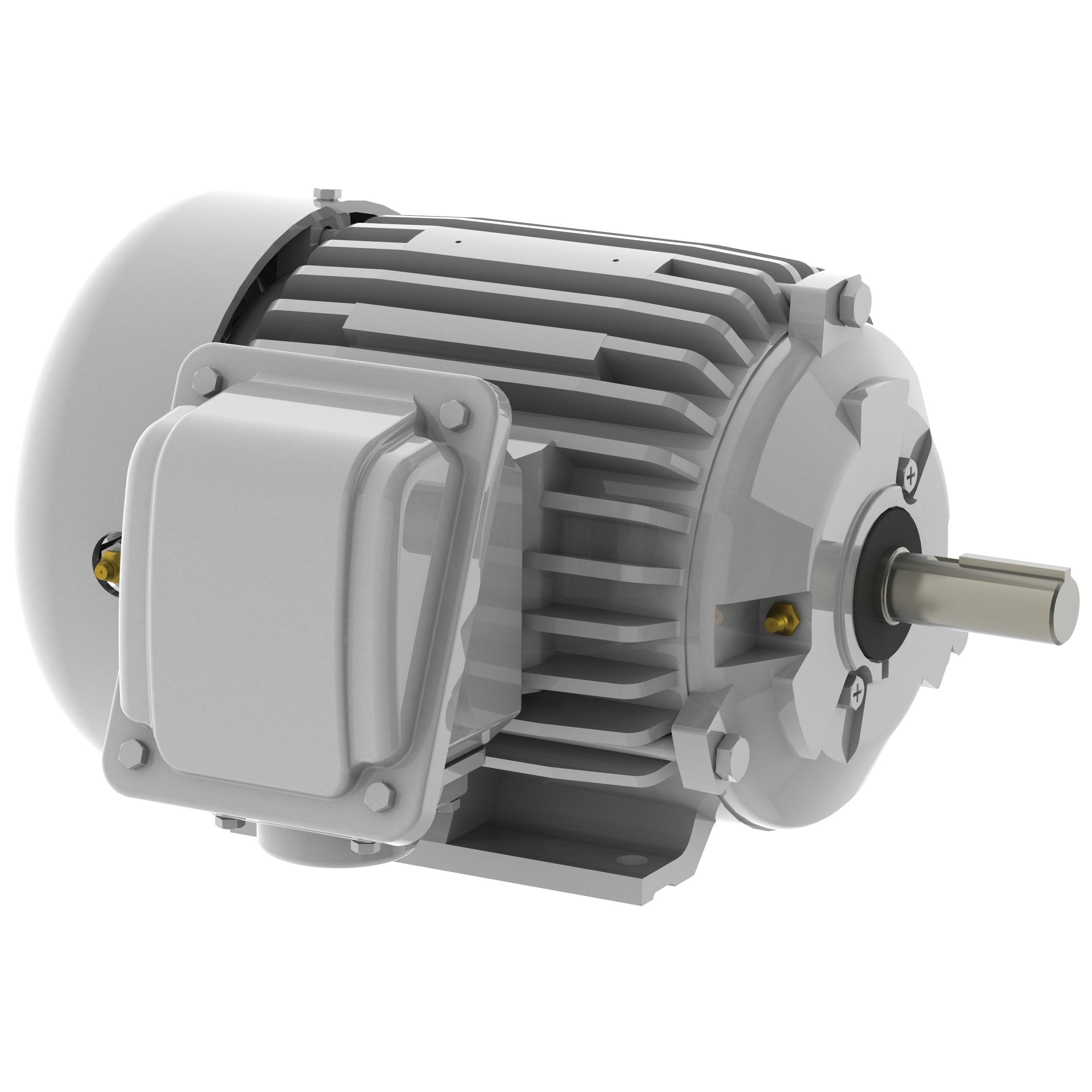

EP0254S Teco Westinghouse Motor 25HP 1800RPM 284TS TEFC 3 Phase

Each unit ships brand new with a manufacturer's warranty.

Applications:

• Fans & Blowers
• Pumps
• Crushers
• Compressors
• Mixers
• Conveyors
• Any Severe Duty / Petro-Chemical / Pump & Paper Application

• Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
• CSA Certified for Class I, Div. 2, Groups B, C, D - Temp Code T3 Minimum(7,8)
• CSA Certified for Class II, Div. 2, Groups F & G - Temp Code T3 Minimum(7,8,12) (444T and Above)
• Class F Insulation
• Class B Temperature Rise
• NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
• Cast Iron Frame, End Brackets & Fan Cover and Main Conduit Box(9
• Grounding Terminal Inside Main Conduit Box
• Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
• Designed for 40°C Ambient Temperature(3)
• Designed for 3300 ft. Elevation(4)
• Bi-Directional Rotation; Except 2 Pole "Hybrid" and Frames# 5000 and Larger Ratings are Counter-Clockwise facing the DE
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction for Frames# 140T - 449T
• Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
• Paint Color: Light Gray - Munsell N5.0
• Double Shielded Bearings Pre-Packed with MULTEMP SRL for Frames# 140T - 280T (Non-regreasable)
• High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM for Frames# 280TS and Larger
• Automatic Grease Discharge Fittings on Regreasable Models
• Labyrinth Type Metal Flinger on Both Ends for Frames# 280TS and Larger
• Cast Iron Inner and Outer Bearing Caps for Frames#280TS and Larger
• Stainless Steel Nameplate
• New Dual Column Design Nameplate as Standard (60/50 Hz)
• Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31(5,6,11)
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque (350 HP and Larger are 3:1 Constant Torque)(11)
• 9 Leads for 5 HP and Smaller
  12 Leads for 7.5 HP to 125 HP
  6 Leads for 150 HP and Larger
• Motors are U.L. Recognized, CSA Approved, CE Marked. ABS Design Assessment from 250 HP-800 HP(11)
• Dual Drilled Feet Available on Most Ratings - Longer Frames (i.e. 145T Drilled also for 143T)
• 2-Pole Motors 600 HP and Larger are Form Wound and Insulated Non-Drive End Bearing
• Rubber Dust Flinger on Drive-End for Frames# 140T - 280T
• Catalog Numbers Ending in "R" Come Standard with Roller Bearings for Belted Applications.
