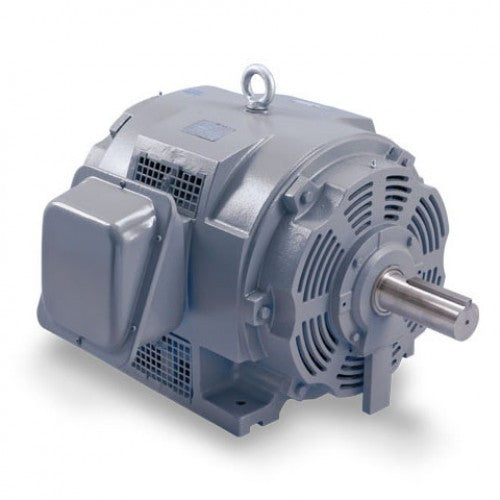

DHP1/56 Teco Westinghouse Motor 1.5HP 1200RPM 182T ODP 208-230/460V 3 Phase

Catalog DHP1/56 by Teco-Westinghouse is a low speed, cast iron motor designed for general purpose applications in relatively dry or clean environments.

Key motor features include an oversized conduit box that rotates for connection convenience; 1.15 service factor; and inverter duty design. Reversible rotation.

Teco-Westinghouse is globally recognized as a premium motor manufacturer. Teco-Westinghouse high-quality machines are used to drive pumps, fans, compressors, rolling mills, grinders, crushers, and a variety of other rugged applications. Their motors and generators are utilized in petroleum, chemical, pulp, paper, mining, marine propulsion, steel, electric utility and other industries throughout the world.

Each unit comes new from the factory with a Teco warranty. Motor features include:

• Class F Insulation
• Class B Temperature Rise
• NEMA Design B Torques
• Designed for 40˚C Ambient Temperature
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
• Stainless Steel Nameplate
• New Dual Column Design Nameplate as Standard (60/50 Hz)
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• 9 Leads for 5 HP and Smaller
• Motors are U.L. Recognized, CSA Approved and CE Marked
