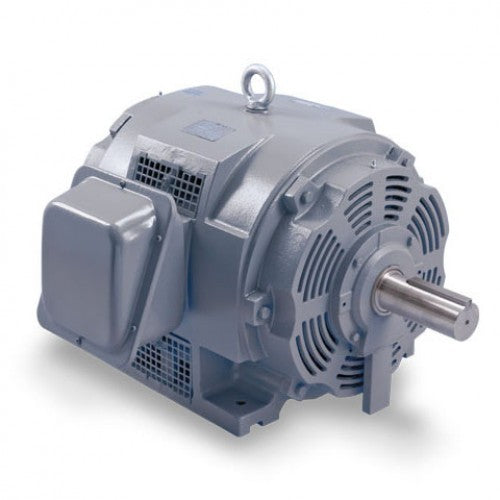

DHP1/52 Teco Westinghouse Motor 1.5HP 3600RPM 143T ODP 208-230/460V 3 Phase

Catalog DHP1/52 by Teco-Westinghouse is a high speed, cast iron motor designed for general purpose applications in relatively dry or clean environments.

Teco-Westinghouse is globally recognized as a premium motor manufacturer. Each unit comes new from the factory with a Teco warranty.

Motor features include:

• Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
• Cast Iron Frame and End Brackets
• Rolled Steel Main Conduit Box
• Grounding Terminal Inside Main Conduit Box
• Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
• Bi-Directional Rotation
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
• Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
• Stainless Steel Nameplate
• New Dual Column Design Nameplate as Standard (60/50 Hz)
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• 9 Leads for 5 HP and Smaller
• Motors are U.L. Recognized, CSA Approved and CE Marked
