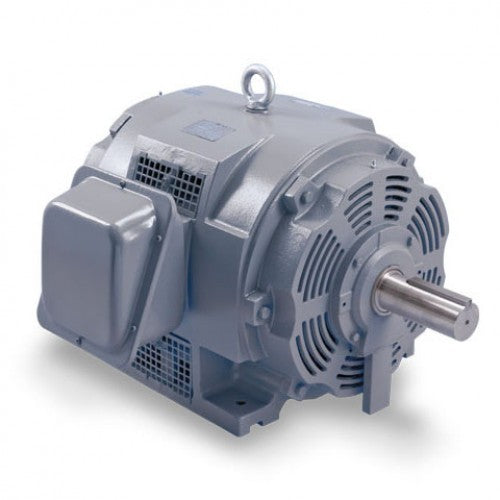

DHP0024 Teco Westinghouse Motor 2HP 1800RPM 145T ODP 208-230/460V 3 Phase

Catalog DHP0024 by Teco-Westinghouse is a heavy cast iron motor designed for general purpose applications in relatively dry or clean environments.

Teco-Westinghouse is globally recognized as a premium motor manufacturer. Each unit comes new from the factory with a Teco warranty.

Motor features include:

• Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
• Class F Insulation
• Class B Temperature Rise
• NEMA Design B Torques
• Cast Iron Frame and End Brackets
• Rolled Steel Main Conduit Box
• Grounding Terminal Inside Main Conduit Box
• Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
• Designed for 40˚C Ambient Temperature
• Designed for 3300 ft. Elevation
• Bi-Directional Rotation
• 1045 Carbon Steel Shaft
• Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
• High Quality Ball (or Roller) Bearings regreasable with Mobil Polyrex™ EM for F# 280TS and Larger
• Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
• Cast Iron Inner and Outer Bearing Caps for F#280TS and Larger
• Stainless Steel Nameplate
• New Dual Column Design Nameplate as Standard (60/50 Hz)
• Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• 9 Leads for 5 HP and Smaller;
• Motors are U.L. Recognized, CSA Approved and CE Marked

Teco-Westinghouse high-quality machines are used to drive pumps, fans, compressors, rolling mills, grinders, crushers, and a variety of other rugged applications. Their motors and generators are utilized in petroleum, chemical, pulp, paper, mining, marine propulsion, steel, electric utility and other industries throughout the world.
